Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission
Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission
Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission
Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission
Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission
Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission
Specifications
Brand Name :
Kimpok technology
Model Number :
KP-DRB01
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Encryption :
AES 128 bit
AV input :
CVBS, HDMI
Video decoding :
H.264
Frequency :
300-4400MHz (subdivided)
Data PTZ control :
Standard RS485
Weight :
18kg
Description

Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission

Description:

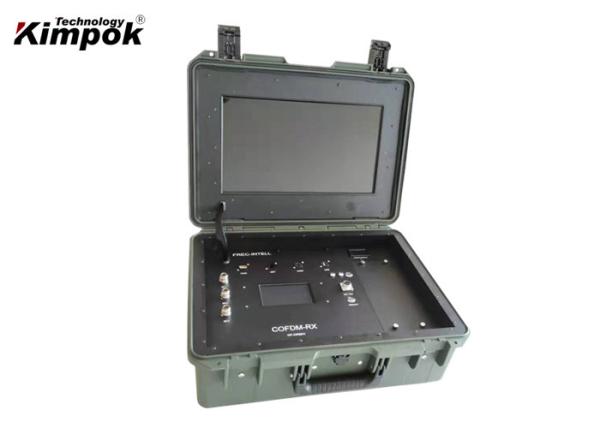

KP-DRB01 high quality security surveillance HDMI wireless video receiver is a new design COFDM wireless video audio receiver from Kimpok.

Portable high quality security surveillance HDMI wireless video receiver is designed with built-in PTZ controller, which is special for transmitting from end camera movement controlling. Build in 120G SSD memory and 17 inch highlight LCD screen, it’s allowed real time video image storage, video monitoring. It also support video playback.

The convenient portable pelican case, PTZ controller, and large volume internal battery design make it wildly applied in outdoor tactical automatic project, like remote wireless video surveillance from robot/ship, EOD robot, UAV point to point application etc.

Feature:

* H.264 video compression;

* 17" Standard Samsung LCD screen;

* Built in 1T SSD memory;

* Support RS485 data signal and video signals transmission simultaneously;

* Advanced AES 128 user-defined password encryption for the security;

* NTSC/PAL adjustable video format;

* Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;

* Adjustable working frequency, bandwidth and etc;

* COFDM modulation, stable signal reception;

* 1080P/i & 720P/i video resolution.

* 6600mAh internal battery

Specification:

Frequency 300-4400MHz (subdivided)
Memory 1 TB
LCD monitor 17 inch
RF level Input -105dBm
RF interface N(F)
AV output CVBS, HDMI
Modulation COFDM
Power supply AC220V / DC12V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK, 16QAM
Data PTZ control Standard RS485
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard interval 1/32,1/16,1/8,1/4 (optional)
Video format PAL/NTSC
Video decoding H.264
Resolution 1080P/i, 720P/i
Lines of horizontal 625 or 525 Line
Audio output Analog stereo left and right channels
Data encryption AES128 user-defined password
Voltage AC220V±20V, DC14V~DC16V
Work environment -30~70° C
Built in battery 6600mAh
Size 520*430*210mm
Weight 18kg

Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission

Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission

Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission

Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission

Outdoor COFDM Wireless Video Receiver with AES Encryption and data Transmission
