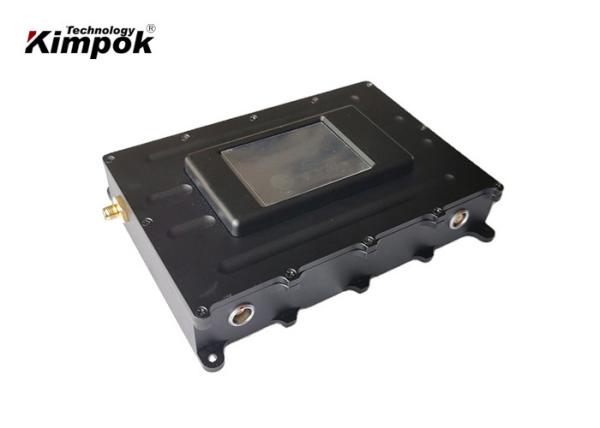

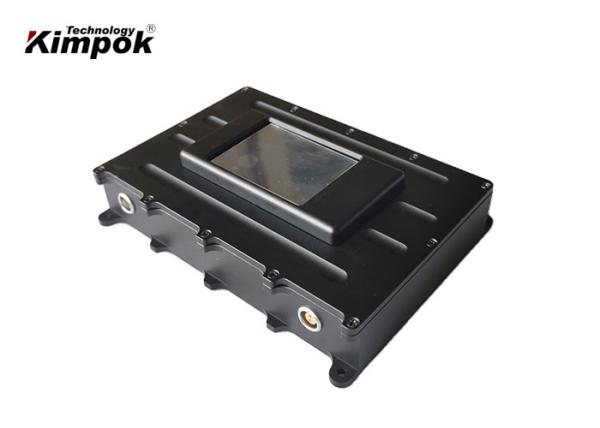

BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use
BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use
BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use
BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use
BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use
BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use
BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use
BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use
Specifications
Brand Name :
Kimpok
Model Number :
KP-HDT2W
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
1,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Modulation :
COFDM
RF power :
2 watt
Encryption :
AES128/256bits
Video input :
CVBS
Dimension :
132*90*26mm
Weight :
420g
Description

BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use

Lightweight COFDM Video Transmitter Features:

  1. Low delay,lightweight,live broadcast;
  2. Support Full- HD quality image;
  3. Support 1080i/1080P HD transission;
  4. COFDM modulation;
  5. Built-in with HDM or HD-SDI interface(single selection);
  6. Support composite standard video and balanced audio input;
  7. All parameters can be adjusted by user;

Wireless COFDM Transmitter Introduction:

KP-HDT2W 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support full HD 1080P H.264 encoding format and HD input as well support stereo balance audio input and narrowband transmission system.

Specification:

Voltage DC11V~DC16V
Current ≤1.1A/DC12.5V

Video Input

 AV: 3.5mm port, connect to standard resolution analog video signal
HDM-I/CVBS: support HD1080P,720P,576,480;
Frequency 300-4400MHz (optional)
Bandwidth 2/2.5/4/8MHz(adjustable)
Output power 2 watt
Data encryption AES 128bit (user-defined password)
Modulation COFDM
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Video Compression H.264
Standard Video Format PAL/NTSC (auto adaptation)
Parameter control method Set the related parameters through the control panel
RF Interface SMA
Working temperature -20℃~75℃
Transmission distance 1-40km max LOS (on air)
Dimension 132*90*26mm
Weight 420g

BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use

BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use

BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use

BodyWorn COFDM Video Transmitter with 2 Watt Power for Emergency use

Our Service

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.

Contact:

Contact person: Ms. Charlene Chen

Mobile/WhatsApp: +8613418931768

Skype: charlenekimpok

Email: sales@kimpok.cn
