DVB - T Digital Wireless AV Transmitter and Receiver 1080P for Drone Helicopter
DVB - T Digital Wireless AV Transmitter and Receiver 1080P for Drone Helicopter
DVB - T Digital Wireless AV Transmitter and Receiver 1080P for Drone Helicopter
DVB - T Digital Wireless AV Transmitter and Receiver 1080P for Drone Helicopter
Specifications
Brand Name :
Kimpok
Model Number :
KP-HD803
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Constellation :
QPSK, 16QAM, 64QAM
Transmit Power :
0.5W
Transmission Range :
LOS: more than 10kms
Motion Speed :
more than 180km/h
Working Voltage :
AC 220V / DC12V
Channel bandwidth :
2/4/8MHz (optional)
Power Output :
22dBm-24dBm (up to 33 dBm with the amplifier)
Latency :
≤80ms
Description

DVB - T Digital Wireless AV Transmitter and Receiver 1080P for Drone Helicopter

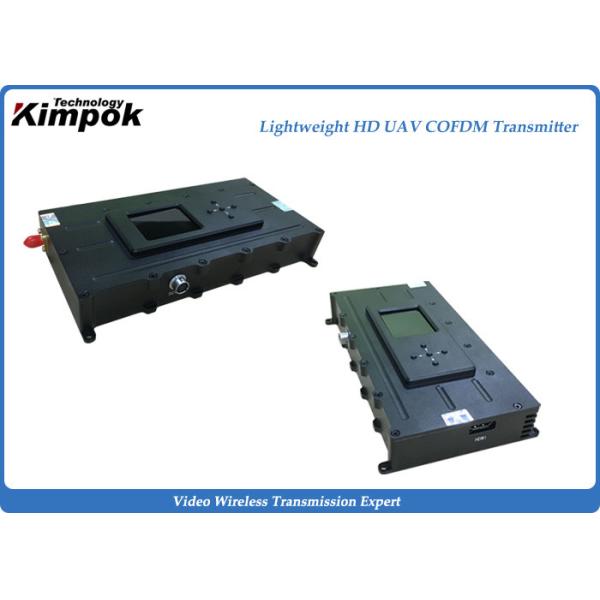

COFDM Video Transmitter:

KP-HD803 is full hd image transmission system equipment, standard DVB-T modulation.The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate,and then improve image quality.It can be the lowest bit rate to achieve the best quality of image.

Main feature:


1) Compact designed,lightweight;
2) Full hd resolution,low delay;
3) High performance,low cost
4) Special for UAV/Drones long range video communication;
5) Maximum rf output 3Watt,can support 40km LOS range.

Transmitter specification:

Power supply DC 7-16V input/output
Power consumption <5W
Modulation DVB-T
Modulation type QPSK/16 QAM/64 QAM
Scrambling way Manual settings ON/OFF
RF power output 1-3Watt (2K mode)
RF bandwidth 8MHz
AV input HD
Resolution HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
Video compression H.264/MPEG-4/MPEG-2
Antenna output 50Ω, SMA or “N” type Connector
Working frequency 300MHz~999MHz (optional)
Step frequency 1K Steps
Guard interval(GI) 1/4, 1/8, 1/16, 1/32 (optional)
Code rate (CR) 1/2, 2/3, 3/4, 5/6, 7/8 (optional)
FFT 2K or 8K
MER >34dBm
LCD display Showing working status and parameters
Parameter setup Manual operation by buttons
Dimension 153*100*34mm
Weight

485g

COFDM Receiver Feature:

Working Voltage DC input 7-24V
Power consumption <4W
Modulation DVB-T
Sensitivity -82dBm (64QAM, 8M/FFT:8K, GI:1/32, CR:7/8)
Working frequency 300MHz~999MHz(optional), 16 groups of frequency choice
RF bandwidth 8MHz
AV output HD
Resolution HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
Video compression H.264/MPEG-4/MPEG-2
RF connector N type
LED light Turns red when the machine is power on
Work indicator Automatically search signal after power-on, blue color and flash; While receive signal, the blue light remains on.Otherwise, lights out.
Scrambling way Manual settings ON/OFF
Dimension 197*124*51mm
Weight 1024g

DVB - T Digital Wireless AV Transmitter and Receiver 1080P for Drone Helicopter

Frequency Table of DIP Switch:

DVB - T Digital Wireless AV Transmitter and Receiver 1080P for Drone Helicopter

UAV Video Transmitter Application:

DVB - T Digital Wireless AV Transmitter and Receiver 1080P for Drone Helicopter

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.

Whatever your wireless surveillance application or budget, we can find the right solution for you.

Contact us! We can customize any solution to fit your requirements.
