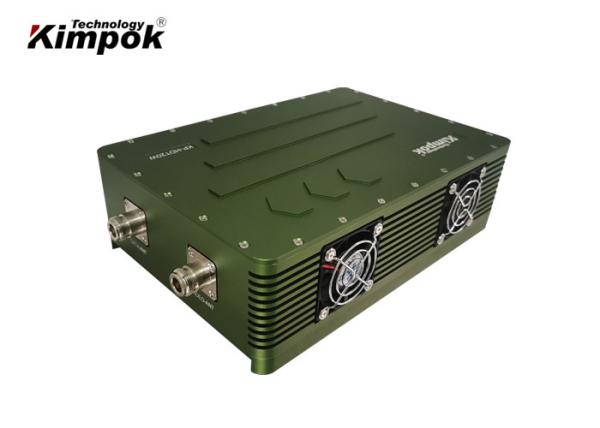

Multi Function COFDM Wireless Video Transmitter Manpack Tactical Radio HD-SDI HDMI CVBS
Multi Function COFDM Wireless Video Transmitter Manpack Tactical Radio HD-SDI HDMI CVBS
Multi Function COFDM Wireless Video Transmitter Manpack Tactical Radio HD-SDI HDMI CVBS
Multi Function COFDM Wireless Video Transmitter Manpack Tactical Radio HD-SDI HDMI CVBS
Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-HDT25W
Certification :
EC/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal
Supply Ability :
1000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export packing standard
Frequency: :
300-900MHz,1.2G/2.4G/5.8GHz
RF Power: :
15-25 Watt (adjustable)
Video Resolution :
1920*1080
Power supply :
DC11-14.5V/1.9A
Size :
220*275*78mm
Weight :
5.1kg
Description

Multi Function COFDM Wireless Video Transmitter Manpack Tactical Radio HD-SDI HDMI CVBS

High Power COFDM Video Transmitter Introduction:

KP-HDT25W It’s a new powerful HD COFDM video audio transmitter, up to 25W power which support transmitting over a long distance.Using the core technology 4th generation mobile communication COFDM modulation and low delay full-HD 1080P technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles(NLOS). Suitable for vehicles - cars, boat - boats, cars - a building, ship – a base station, aircraft –a buiding/vehicle and etc. high-definition moving video signal transmission, the carrier velocity greater than 450 km / h.Widely used in public security, armed police, fire, field armies,other military departments and broadcasting, urban management, civil defense, transportation, customs, oil, mining, water, electricity, geology, finance and other relevant state departments.


Features:

​

  1. Full hd resolution 1080P/1080I@60fps;
  2. COFDM modulation,H.264 video compression mode;
  3. Built in with HD/HD-SDI port;
  4. Small in size and lightweight;
  5. 4/8MHz RF bandwidth;
  6. strong heat resistance capacity;
  7. PAL/NTSC self adaption;
  8. Support 15-25W rf power;
  9. Support L/R stereo audio in/out;
  10. Only has 150ms low delay;

Specification:

Frequency 300-900MHz,1.2G/2.4G/5.8GHz
RF power 15-25Watt(adjustable)
Power supply DC11-14.5V/1.9A
Modulation COFDM 2K QPSK
RF Bandwidth 4/8MHz(adjustable)
Delay time Only 150ms
FEC 1/2 2/3 3/4 7/8
Guard Interval 1/32 1/16 1/8 1/4
Data Encryption AES 128/256 Bits
Max speed 450km/h
Video Input BNC: D1 standard definition
HD: HD1080I/1080P, 720P, 576, 480
SDI:HD1080I/1080P, 720P, 576, 480
Video compression format H.264
Video Resolution 180p/1080i@60fps, 1920*1080 definition
RF Interface N
Work environment -40℃~70℃
Video Format PAL/NTSC(self-adaption)
Transmission Distance

15km NLOS distance(ground to ground)

20km-35km LOS distance(on sea)
Case Material Aluminum (black)
Size 220*275*78mm
Weight 5.1kg

Multi Function COFDM Wireless Video Transmitter Manpack Tactical Radio HD-SDI HDMI CVBS

Multi Function COFDM Wireless Video Transmitter Manpack Tactical Radio HD-SDI HDMI CVBS

Remote HD Wireless Video Transmitter Package:

  • 1* Transmitter;
  • 1* Receiver;
  • 1* Magnetic antenna
  • 1* Yagi Antennas;
  • 1* FRP omni antenna &cables

Multi Function COFDM Wireless Video Transmitter Manpack Tactical Radio HD-SDI HDMI CVBS

Multi Function COFDM Wireless Video Transmitter Manpack Tactical Radio HD-SDI HDMI CVBS

FAQ:

Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.

Our Service:

· One-stop ODM/OEM solution;

· 24-hour technical support;

· Lifelong maintenance (Replacement parts will be charged after a year);

· Provide professional system design and construction;

· You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
