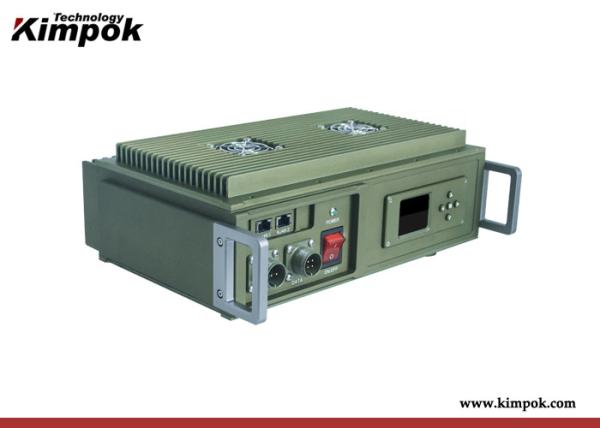

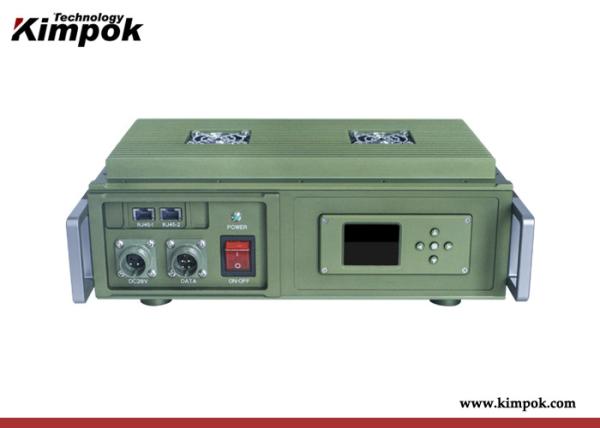

30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-FDD30W
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
1000PCS per month
Delivery Time :
10-15 days
Packaging Details :
Export Standard Packing
Modulation :
FDD-COFDM 2K
Frequency :
300-3300MHz (subdivision)
RF power :
30W
RF Bandwidth :
1/2/4/8MHz
Weight :
8.7kg
Description

30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264

Ethernet Network COFDM Transmitter Description:

FDD-COFDM, using COFDM multi carrier modulation and demodulation technology is a new type of full duplex communciation system used in NLOS mobile transmission application. Supporting non-line of sight distance transmission.It uses transparent IP data to provide a balance and stable high-speed data rate up link(30Mbit/s) and downlink(30Mbit/s).

KP-FDD30W is a high power Network IP radios based on COFDM modulation.It's special designed for Vehicle or Unmanned control vehicle in need for robust video wireless communcation and data control through IP network.

Feature:

  • COFDM modulation,FDD technology
  • Great transfer rate for uplink and downlink
  • Transparent IP Ethernet and serial data sync telecommunication
  • 20W rf power for bi-directional video data communication
  • Military level 128bit dynamic AES encryption
  • RF Narrowband 1/2/4/8MHz available
  • Integrated design,efficient heat dissipation,low consumption
  • Easy deployment,Simple operation


Specifications:

ModelKP-FDD30W
Power supplyDC28V/6.8A
TX output frequency675MHz (can be customized 300-3300MHz),step in 1MHz
RX output frequency715MHz (can be customized 300-3300MHz),step in 1MHz
RF bandwidth1/2/4/8MHz
RF power output45dBm
Encryption/decryption modeAES128 bits(user-defined password)
ModulationCOFDM 2K
Transfer rate2x30 Mbit/s uplink and downlink
RF connectorN type *2
EthernetStandard RJ45 port *2
Serial portRS232 serial port
Baud rate115200bps maximum
Two way audioAviation plug
LCD panel with keypadEasy to set the related parameters
Dimension320*210*110mm
Weight8.7kg
Transmit distance10-20 km NLOS / 20-40km LOS on ground level























30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
