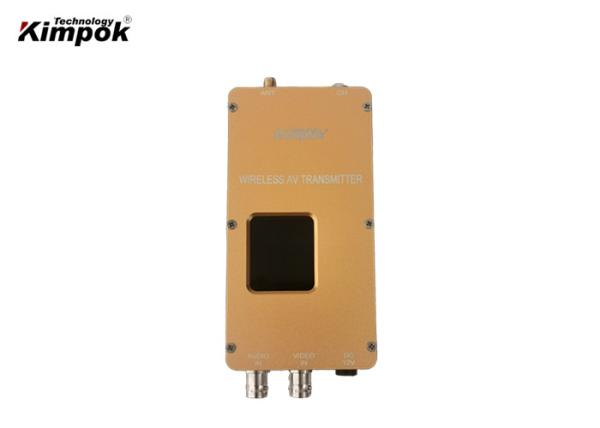

High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input
High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input
High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input
High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input
High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input
High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input
Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-12TX5W
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union,PayPal
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Product :
Wireless video transmitter and receiver
Transmit Power :
5 watt
Voltage :
DC 12V
Frequency :
1.2Ghz
Transmit Distance :
5~10km LOS on ground
Number of channels :
8 channels
Description

High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input​

CCTV wireless video sender Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Tx Specification:

Frequency

1.2 GHz

Current

2A

Voltage

12V DC

Number of channels

8 Channels
Frequency band

1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz

Transmit Power

5 watt

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M 6.0M

Distance (Open environment)

5~10km

Overall Configuration

Transmitter, AV cable, high gain antenna

Temperature

-10℃ ~ +50℃

Transmitter Weight

200g

Receiver Weight

90g

Dimensions (L * W * H)

Transmitter:150*65*30mm. Receiver: 100*60*20mm

Rx specification:

Frequency 1.2 Ghz
Channel 8 channels
Frequency band 1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz
Working voltage DC 12V
Current consumption 0.3A
Weight 90g
Size 120*60*20mm
Accressories

receiver, antenna, AV cable

High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input

Installing:

High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input

Ease of Installation

Wireless transmissions perform the same job as wired transmissions; both convey information from point A to point B. The difference with wireless is that there is nothing to see, nor cable to pull — it’s invisible! This, of course, makes the installation of a video security system fast while maintaining a professional appearance.

Temporary Needs

Wireless video security systems are an excellent choice when individuals or businesses need to temporarily monitor a room or specific valuables. It allows people to secure their valuables without making any permanent modifications to their home or business. This makes a wireless system the best choice for CCTV surveillance of rental properties or apartments.

Covert Applications

Whether the application is indoor or outdoors, wireless video is almost always preferred over using cabling for covert use. Wireless video minimizes the chance of detection during installation and monitoring, and reduces the chances that the suspect(s) will discover the gear. In many cases, wireless video is the only option for covert needs.


Kimpok is specialized in COFDM, TDD and Analog wireless video transmission products for over 13 years, including Wireless Video Transmitter, HD Video Wireless Transmitter and Receiver, quality UAV/UGV Wireless Video Transmitter, and CCTV Wireless Sender, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, UAV, UGV, Automobiles and so on.
