Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-HDT20W-2
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
1,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Modulation :
COFDM QPSK
RF power :
5-20 watt (adjustable)
Frequency :
138MHz-4400MHz (available)
Bandwidth :
2/2.5/4/8M(adjustable)
Video input :
HDM/SDI; CVBS
Dimension :
220*140*80mm
Description

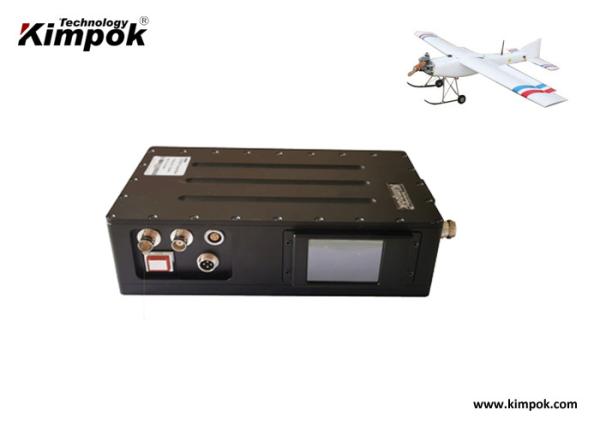

150km LOS COFDM Video Transmitter HD 1080P for UAV Video & Data Communication

COFDM UAV Transmitter Feature:

  • COFDM modulation, Stable transmission
  • Mobile and NLOS transmission
  • MPEG-4/H.264/H.265 video compression, DVD video quality

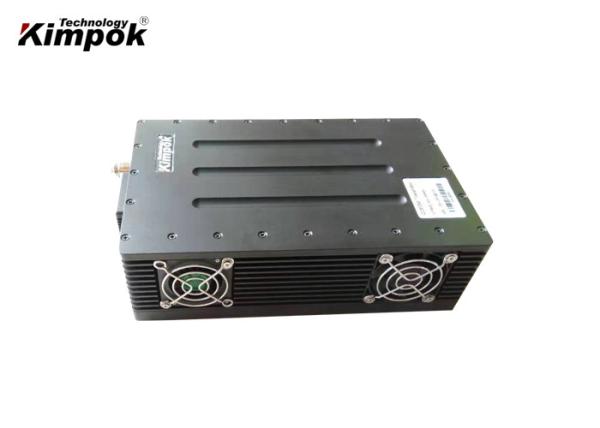

  • Strong casing with built-in two cooling fans
  • Great security by encryption of AES 128 bits
  • Low system latency
  • Modular design, compact structure, OEM design
  • Can be customized to add additional features, such as HD/HD-SDI, data port, Ehernet and etc..

Introduction:


KP-HDT20W is a digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans. Be safety with AES128/256bits. Work well in fast-moving transmission and obstruction environment.

Specifications:

Modulation CODFM
DC input DC12V-DC14V
Working Current ≤4.7A@DC12V
Constellation QPSK,16QAM,64QAM (optional)
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Carrier 2K
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Frequency 138MHz-4400MHz (available)
RF power output 20W (available)

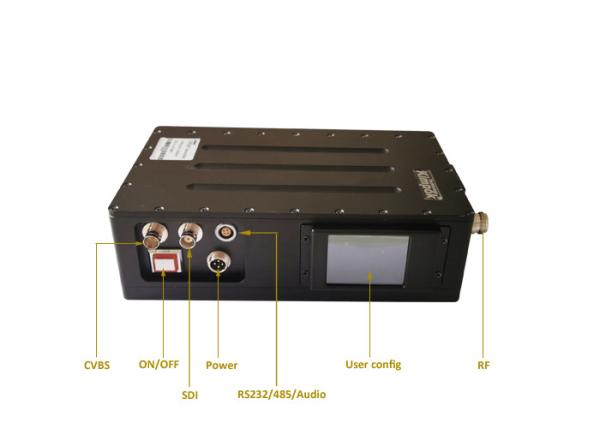

A/V interface HDM-I/HD-SDI; CVBS
RF interface N type
Flatness ≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic 1Vp-p @ 75Ω, NTSC/PAL adaptive
CBER <2.0E-4
Video Compression H.265/H.264/MPEG-4
Resolution 1080P/720P
Video Rate 6Mbps
Work environment -30~70°

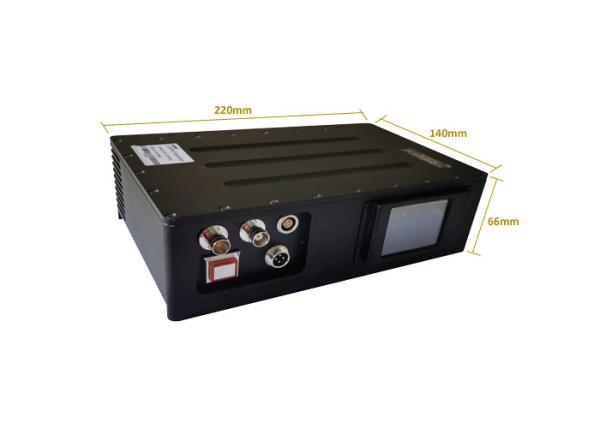

Dimension 220*140*80mm
Weight 2.3kg

Receiver parameters:

150km LOS UAV Video Transmitter COFDM High Speed Mobile Wireless Communication

Product Features:

  1. HD 1080P receiver;
  2. Supported multi-socket output;
  3. Transmit video and audio signal simultaneously.
  4. Can be with RS485/RS232 data control together.
  5. Rack design,easy to installed in Car

Specifications:

DC Input DC11V~DC16V
Working Current ≤1.1A@DC12.5V
Receiving sensitivity ≤-102dBm @ /4MHz, ≤-95dBm @ /8MHz
BER BER≤1×10-4
Frequency input range 300MHz~--470MHz
Input interface N(type),Dual antenna diversity reception technology
Modulation COFDM
RF bandwidth 4/8MHz (adjustable)
Constellation QPSK,16QAM,64QAM (optional)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
FEC 1/2,2/3,3/4,5/6, 7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2K
Video formats and amplitude PAL/NTSC, 1Vp-p/75Ω
Video compression H.265/H.264/MPEG-4(autoadaptation)
Decode code stream rate 0.5-12Mbps
Video output interface Composite video RCA,HDM-I,ASI,HD-SDI(alternative)
Interrupt recovery Better than 2S
Video channel characteristic Differential gain DG≤1.5%, Differential phase DP≤1°
Audio output Left and right channel and stereo
Dimension 440*340*65mm(1U chassis)
Weight: 3.8kg

Application:


This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.

150km LOS UAV Video Transmitter COFDM High Speed Mobile Wireless Communication

Kimpok is specialized in COFDM, TDD-COFDM and Analog wireless video transmission products for over 12 years, including Wireless Video Transmitter, HD Video Wireless Transmitter and Receiver, quality UAV/UGV Wireless Video Transmitter, and CCTV Wireless Sender, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, UAV, UGV, Automobiles and so on.
