DVB-T Digital Wireless AV Transmitter Receiver HD COFDM Transmitter with 3 Watt
DVB-T Digital Wireless AV Transmitter Receiver HD COFDM Transmitter with 3 Watt
Specifications
Brand Name :
Kimpok
Model Number :
KP-HD803
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
3,000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Export standard packing
Resolution: :
HD1080P(1920*1080)
Modulation :
DVB-T
Power :
1-3W
Working frequency :
300-999 Mhz
FFT :
2K or 8K
Dimension :
153*100*34mm
Description

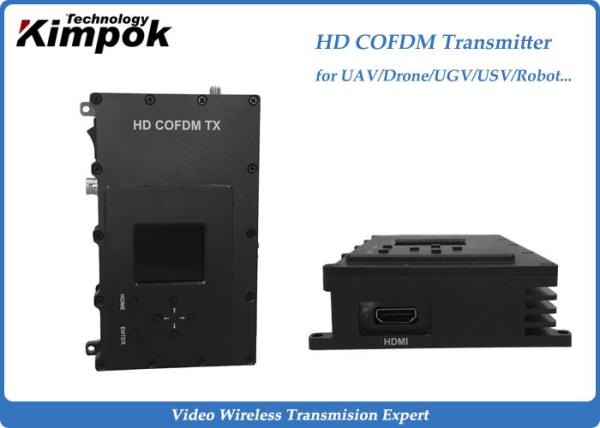

DVB-T Digital Wireless AV Transmitter Receiver HD COFDM Transmitter with 3 Watt

KP-HD803 is FULL HD image transmission system equipment with standard DVB-T modulation.

It's use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay, increase the error rate to improve image quality. The lowest bit rate to achieve the best quality of image.

DVB-T Digital Wireless AV Transmitter Receiver HD COFDM Transmitter with 3 Watt

Transmitter specification:

Power supply DC 7-16V input/output
Power consumption <5W
Modulation DVB-T
Modulation type QPSK/16 QAM/64 QAM
Scrambling way Manual settings ON/OFF
RF power output 1-3Watt (2K mode)
RF bandwidth 8MHz
AV input HD
Resolution HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
Video compression H.264/MPEG-4/MPEG-2
Antenna output 50Ω, SMA or “N” type Connector
Working frequency 300MHz~999MHz (optional)
Step frequency 1K Steps
Guard interval(GI) 1/4, 1/8, 1/16, 1/32 (optional)
Code rate (CR) 1/2, 2/3, 3/4, 5/6, 7/8 (optional)
FFT 2K or 8K
MER >34dBm
LCD display Showing working status and parameters
Transmission Distance: 40km LOS distance
Parameter setup Manual operation by buttons
Dimension 153*100*34mm
Weight 485g

Receiver Feature:

Working Voltage DC input 7-24V
Power consumption <4W
Modulation DVB-T
Sensitivity -82dBm (64QAM, 8M/FFT:8K, GI:1/32, CR:7/8)
Working frequency 300MHz~999MHz(optional), 16 groups of frequency choice
RF bandwidth 8MHz
AV output HD
Resolution HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
Video compression H.264/MPEG-4/MPEG-2
RF connector N type
LED light Turns red when the machine is power on
Work indicator Automatically search signal after power-on, blue color and flash; While receive signal, the blue light remains on.Otherwise, lights out.
Scrambling way Manual settings ON/OFF
Dimension 197*124*51mm
Weight 1024g

Our Service

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
