UHF Digital Long Range Video Transmitter , 1080P HD Wireless Video Sender 40 Watt RF
UHF Digital Long Range Video Transmitter , 1080P HD Wireless Video Sender 40 Watt RF
UHF Digital Long Range Video Transmitter , 1080P HD Wireless Video Sender 40 Watt RF
UHF Digital Long Range Video Transmitter , 1080P HD Wireless Video Sender 40 Watt RF
Specifications
Brand Name :
Kimpok
Model Number :
KP-HDT25W
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
Export standard packing
Video Resolution :
180p/1080i@60fps, 1920*1080 definition
Work environment :
-40℃~70℃
Video Format :
PAL/NTSC(self-adaption)
Delay time :
Only has 150ms
Data Encryption :
AES 128/256 Bits
RF Interface :
N type
Size :
275*200*78mm
Weight :
5kg
Description

UHF Digital Long Range Video Transmitter , 1080P HD Wireless Video Sender 40 Watt RF

Digital Video Transmitter Introduction:

KP-HDT25W is a new powerful HD COFDM video audio transmitter, up to 40W power which support transmitting over a long distance even with obstacles.

Using the core technology 4th generation mobile communication COFDM modulation and low delay full-HD 1080P technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles(NLOS).

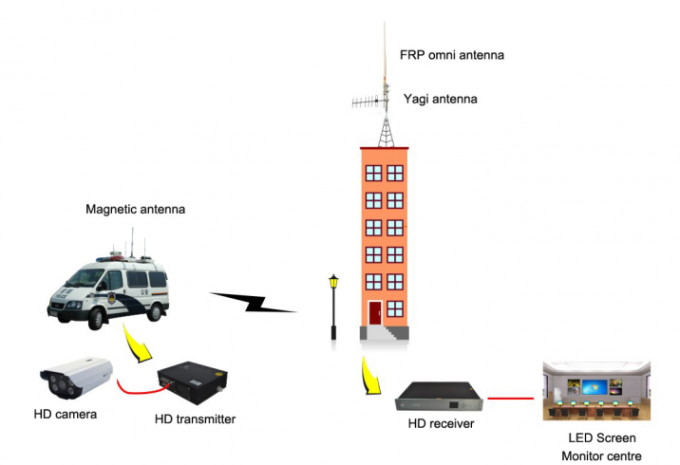

Suitable for vehicles - cars, boat - boats, cars - a building, ship – a base station, aircraft –a buiding/vehicle and etc. high-definition moving video signal transmission, the carrier velocity greater than 450 km / h.Widely used in public security, armed police, fire, field armies,other military departments and broadcasting, urban management, civil defense, transportation, customs, oil, mining, water, electricity, geology, finance and other relevant state departments.


Features:​

  • Small in size and lightweight;
  • Full hd resolution 1080P/1080I@60fps;
  • COFDM modulation,H.264 video compression mode;
  • Built in with HD/HD-SDI port;
  • Only has 150ms low delay;
  • 4/8MHz RF bandwidth;
  • strong heat resistance capacity;
  • PAL/NTSC self adaption;
  • Support 40W rf power;
  • Support L/R stereo audio in/out;

Specification:

Frequency 300-900MHz,1.2G/2.4G/5.8GHz
RF power 35~40Watt(adjustable)
Power supply DC11-14.5V/1.9A
Modulation COFDM 2K QPSK
RF Bandwidth 4/8MHz(adjustable)
Delay time Only has 150ms
FEC 1/2 2/3 3/4 7/8
Guard Interval 1/32 1/16 1/8 1/4
Data Encryption AES 128/256 Bits
Max speed 450km/h
Video Input BNC: D1 standard definition
HD: HD1080I/1080P, 720P, 576, 480
SDI:HD1080I/1080P, 720P, 576, 480
Video compression format H.264
Video Resolution 180p/1080i@60fps, 1920*1080 definition
RF Interface N
Work environment -40℃~70℃
Video Format PAL/NTSC(self-adaption)
Transmission Distance

20-30km NLOS distance(ground to ground)

40km-50km LOS distance(on sea)
Case Material Aluminum (black)
Size 275*200*78mm
Weight 5kg


HD Video Sender Package:

  • 1* Transmitter;
  • 1* Receiver;
  • 2* FRP omni antennas &cables

UHF Digital Long Range Video Transmitter , 1080P HD Wireless Video Sender 40 Watt RF
