13mm Small High Torque Dc Gear Motor 12v Carbon brushed
13mm Small High Torque Dc Gear Motor 12v Carbon brushed
Specifications
Brand Name :
Kind Motor
Model Number :
KGM13-030
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$1.9-$3.9/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3 volt-24 volt
Speed(rpm) :
8 rpm-6000rpm
Gears material :
Stainless steel
Brush Type :
Metal brushed/Carbon brushed
Type :
Gearbox Reducer Motor
Rated Torque :
≤2.5kg.cm
Continuous current(a) :
≤6A
Output power :
≤3W
Description

High quality low noise micro 13mm 16mm dc 3v 5v 6v 7.4v 12v 24v 030 050

carbon brush motor with speed reducers gearbox

Product introduction

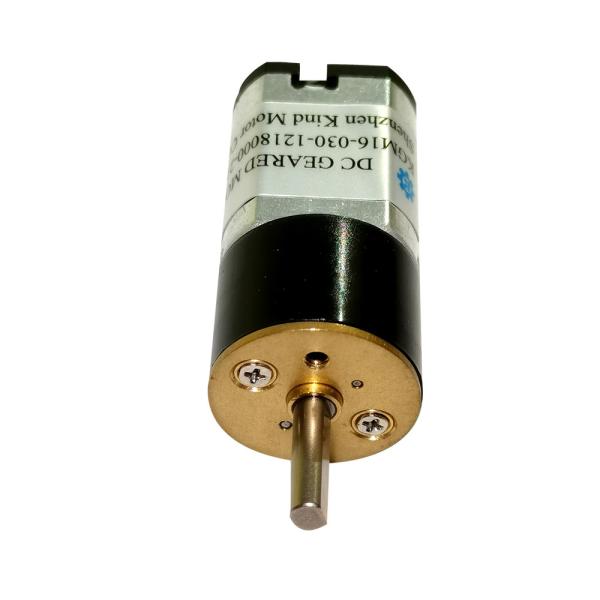

This is diameter 15.5mm dc 030 050 motor with 12×13mm all-metal flat gearbox,the motor

have precious metal-brushed and carbon-brushed.030 and 050 have same diameter different

length,050 motor have higher torque.the gearbox have 1:3,1:10,1:20,1:30,1:50,1:70,1:86,1:115

,1:150,1:210,1:250,1:360 reduction ratio,you can choose according your requirement,the motors

Can with encoder

Brand:Kind Motor

Model KGM13-030
Gears Material Stainless steel
Gearbox Reduction ratio 3/1～360/1
Motor model 030 and 050 Brushed Motor
Brush Type Precious Metal-Brushed/Carbon-Brushed
Voltage 3vdc,3.7vdc,5vdc,6vdc,7.4vdc,8vdc,12vdc,24vdc
Speed 8rpm-6000rpm
Rated Torque
＜2.5kg.cm
Shaft Size 3mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,Electric toothbrush,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

Advantages:

1. Support google play services

2. Provide free SDK to develop software

3. Multiple language for option

050 Carbon-brush motor with metal gearbox

13mm Small High Torque Dc Gear Motor 12v Carbon brushed

030 Carbon-brush motor with metal gearbox

13mm Small High Torque Dc Gear Motor 12v Carbon brushed

13mm Small High Torque Dc Gear Motor 12v Carbon brushed
