Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor
Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor
Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor
Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor
Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor
Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor
Specifications
Brand Name :
Kind Motor
Model Number :
KGM12-N10
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
1PCS
Price :
$1.8-$3.5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
1.5-24volt
Speed(rpm) :
4-6000rpm
Gears material :
Stainless steel
Brush Type :
Metal brush/Carbon brush
Type :
Gearbox Motor
Rated Torque :
≤200mNm
Stall Torque :
≤300mNm
Continuous current(a) :
≤1.8A
Output power :
≤1.9W
Weight :
10g
Description

Small gm12 12mm 3v 6v 12vdc N10 N20 N30 1:20 1:50 1:298 1:420 1:1000 gear ratio gear box reducer electric motor

Product introduction

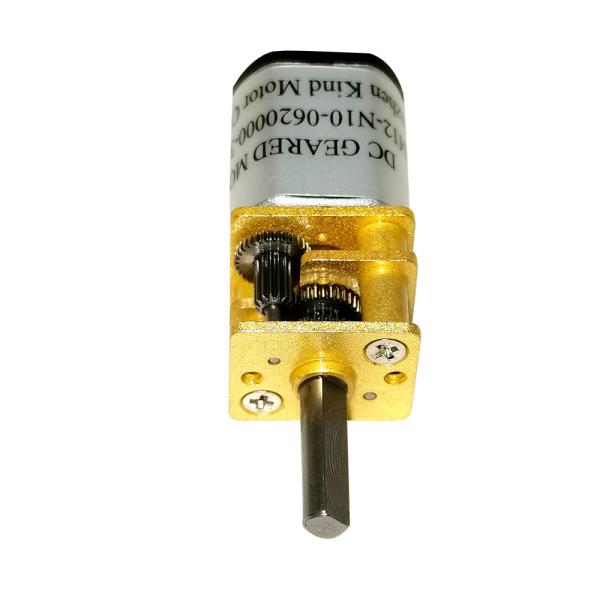

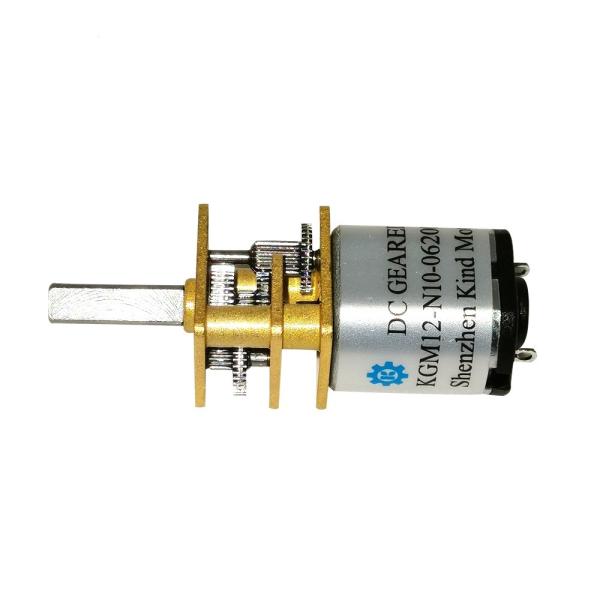

This is dc brushes motor with diameter 10×12mm spur all metal reduction gearbox,the gearbox

have 5:1 10:115:1 30:1 50:1 75:1 100:1 150:1 210:1 250:1 298:1 380:1 422:1 600:1 1000:1

reduction ratio,it's can with four type motors(N10,N20,N30,N50),they have same diameter

different length,longer length have higher torque,the motor have metal brush and carbon brush,

carbon brush have longer lifetime,you choode different reduction ratio and motor,the speed and

torque is different.

Brand:Kind Motor

Model KGM12-N10
Gears Material Stainless steel
Gearbox Reduction ratio 5:1～1000:1
Motor model N10 ,N20 ,N30 and N50 Brushes Motor
Brush Type Precious Metal-Brushed/Carbon-Brushed
Voltage 1.5v,3v,3.7v 4.5v,5v,6v,7.4v,8v,9v,12v,24v
Speed 3rpm-6000rpm
Rated Torque
＜200mNm
Shaft Size 3mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 6mm~60mm can be chosen
█The parameters and shaft size can customized

DC N20 Metal-brush motor with spur 10*12mm all metal reducer gearbox

Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor

Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor

DC N20 Carbon-brush motor with spur 10*12mm all metal reducer gearbox

Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor

DC N30 Metal-brush motor with spur 10*12mm all metal reducer gearbox

Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor

DC N30 Metal-brush motor with spur 10*12mm all metal reducer gearbox

Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor

Small 10×12mm Gear Box Reducer 300mNm Stainless Steel Electric Motor
