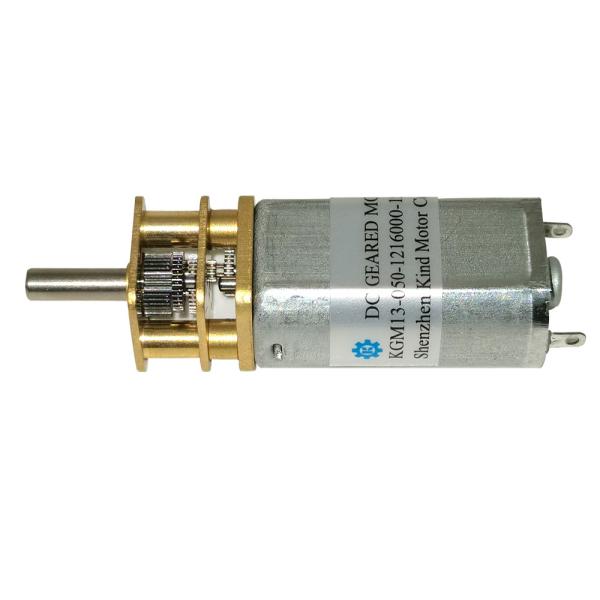

Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush
Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush
Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush
Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush
Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush
Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush
Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush
Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush
Specifications
Brand Name :
Kind Motor
Model Number :
KGM13-050
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$1.9-$3.9/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3 volt～24 volt
Speed(rpm) :
8 rpm～6000 rpm
Gears material :
Stainless steel
Brush Type :
Metal-brushes/Carbon-brushes
Type :
Gearbox Reduction Motor
Rated Torque :
≤2500g.cm
Stall Torque :
≤4000g.cm
Continuous current(a) :
≤6.2A
Output power :
≤3.2W
Weight :
30g
Description

Miniature 3mm shaft dc 3V 5V 6V 9V 12V 24 volt gm13-030 gm13-050 gear reduction

motor china factory

Product introduction

This is dc 030 050 motor with 12×13mm all-metal gearbox,the motors have precious metal

brushed and carbon-brushed.030 and 050 have same diameter 15.5mm,length is different,

050 motor have higher torque,the motors can with encoder

Brand:Kind Motor

Model KGM13-050
Gears Material Stainless steel
Gearbox Reduction ratio 1:3～1:360
Motor model 030 and 050 Brushed Motor
Brush Type Precious Metal-Brushed/Carbon-Brushed
Voltage 3 vdc,3.7 vdc,5 vdc,6 vdc,7.4 vdc,8 vdc,12 vdc,24 vdc
Speed 8rpm-6000rpm
Rated Torque
＜2500g.cm
Shaft Size 3mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,Electric toothbrush,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

Metal gearbox with 050 Carbon-brush motors

Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush

Metal gearbox with 030 Carbon-brush motors

Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush

Stainless Steel 3.2W Micro DC Geared Motor 6.2A For Electric Toothbrush
