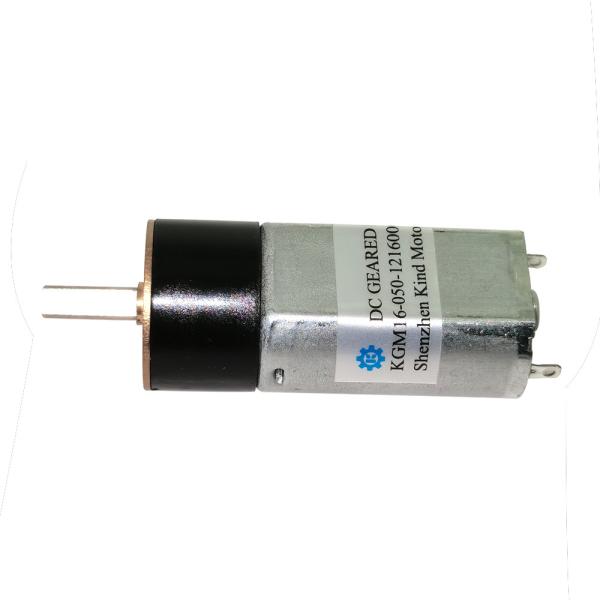

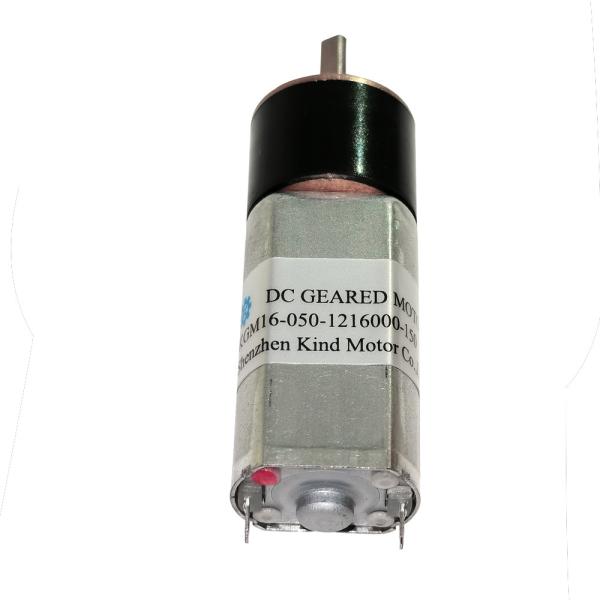

150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment
150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment
150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment
150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment
150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment
150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment
150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment
150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment
Specifications
Brand Name :
Kind Motor
Model Number :
KGM16-050
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$2.0-$4.1/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
DC 3.0 volt～24.0 volt
Speed(rpm) :
6 rpm～6000 rpm
Gears material :
Stainless steel
Brush Type :
Metal-brush or Carbon-brush
Type :
Motor and gearbox
Rated Torque :
＜1.9kg.cm
Stall Torque :
＜4.0kg.cm
Continuous current(a) :
≤2.9A
Output power :
≤3.9W
Weight :
38g
Description

Low price micro 16ga motor 150 rpm 300rpm 450rpm 3mm D-shaft with 16mm gearbox

Product introduction
This is 030 050 5vdc 6vdc 12vdc 24vdc brushed dc motor with speed reduction

gearbox,the motors have precious metal brushed and carbon-brushed,the gearbox

have many different reduction ratio,the length is different,the motors can with

12ppr and 16ppr encoder.

Brand:Kind Motor

Model KGM16-050
Gears Material Stainless steel
Gearbox Reduction ratio 1:3-1:360
Motor model 030 motor,length is 18.6mm
050 motor,length is 26.7mm
Brush Type Metal-Brushed/Carbon-Brushed
Voltage
3vdc,3.3vdc,3.7vdc,4.5vdc,5vdc,6vdc,7.4vdc,9vdc,
12vdc,24vdc
Speed 5rpm-6200rpm
Rated Torque
＜2100g.cm
Shaft Size 3mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,Electric toothbrush,etc.


Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

050 brushed dc motor with speed reduction gearbox
150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment

030 brushed dc motor with speed reduction gearbox
150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment

150rpm Micro Geared Motor 18.6mm D Shaft For Beauty Equipment
