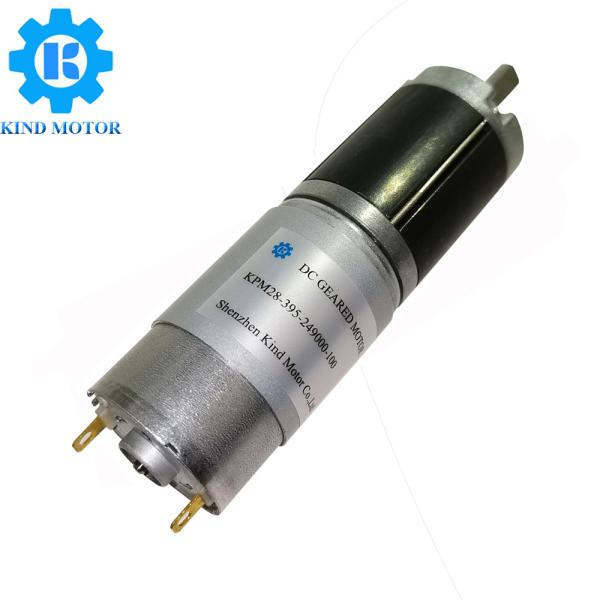

28mm Diameter Kpm28-395 Dc 12v-24v Planetary Gear Motor With Encoder
28mm Diameter Kpm28-395 Dc 12v-24v Planetary Gear Motor With Encoder
28mm Diameter Kpm28-395 Dc 12v-24v Planetary Gear Motor With Encoder
28mm Diameter Kpm28-395 Dc 12v-24v Planetary Gear Motor With Encoder
Specifications
Brand Name :
Kind Motor
Model Number :
KPM28-395
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
200
Price :
$5.5-$12.5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3 volt-36 volt
Speed(rpm) :
1rpm～3300rpm
Gears material :
Stainless steel
Brush Type :
Brushes/Brushless
Type :
planetary gearbox with motor
Rated Torque :
≤12.5kg.cm
Stall Torque :
≤32kg.cm
Continuous current(a) :
≤6.8A
Output power :
≤3.8W
Weight :
188g
Description

High torque low speed 28mm diameter gmp28-395pm dc 12v-24v planetary

gear motor with encoder

Product introduction
This is 28mm dc 12v-24v planetary gear motor,the planetary gearbox can withstand high

torque,it's can with carbon-brush motors and brushless motor,the voltage can be 6 v 7.2 v

8 v 9 v 12 v 24 v,the parameters and shaft can customized according requirement,the brush

motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KPM28-395
Gears Material All Metal
Gearbox Reduction ratio 1/5～1/2142
Motor model 385 brush motor(length is 38mm)
395 brush motor(length is 47mm)
Brush Type Carbon-Brushed/Brushless
Voltage 4.5 v,5 v,6 v,7.4 v,9 v,12 v,24 v
Speed 1rpm ～3500rpm
Rated Torque
＜1.25Nm
Shaft Size 6mm D shaft(Can Customized)
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.


Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

RS395 dc caron-brush motor with 28mm planetary gearbox
28mm Diameter Kpm28-395 Dc 12v-24v Planetary Gear Motor With Encoder


28mm Diameter Kpm28-395 Dc 12v-24v Planetary Gear Motor With Encoder
