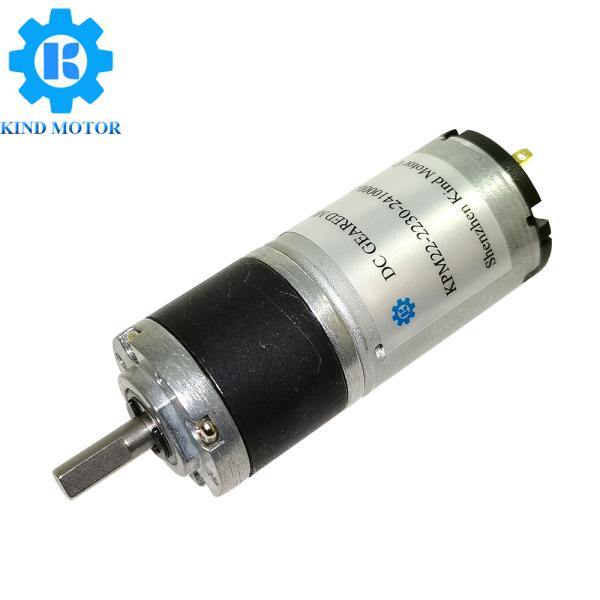

22mm Ig22gm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reduction Motors
22mm Ig22gm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reduction Motors
22mm Ig22gm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reduction Motors
22mm Ig22gm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reduction Motors
Specifications
Brand Name :
Kind Motor
Model Number :
KPM22-2230
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
200
Price :
$5.5-$12.5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3v～36v
Speed(rpm) :
1rpm-3500rpm
Gears material :
Stainless steel
Brush Type :
Carbon-brushed
Type :
DC Planetary geared motor
Rated Torque :
＜0.62Nm
Stall Torque :
＜1.1Nm
Continuous current(a) :
≤7.5A
Output power :
≤4.3W
Weight :
65g
Description

High quality low noise micro 22mm ig22gm pgm22 gmp22-130 6vdc 12vdc

24vdc metal planetary gearbox reduction motors

Product introduction
This is 22mm metal planetary gearbox reduction motors,the voltage can be 3v 5v 6v 7.2v

8v 9v 12v 24v,the 22mm planetary gearbox is stronger than spur gearbox,if 20mm spur

gearbox can't reach your requirement,you can choose planetary gearbox,the 22mm planetary

gearbox can with 130,180,2230 and 2238 motors,the parameters can customized,the gearbox

have many different reduction ratio,the motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KPM22-2230
Gears Material All Metal
Gearbox Reduction ratio 4/1～2418/1
Motor model RK130 carbon brush motor,length is 25mm
RK180 carbon brush motor,length is 32mm
Brush Type Precious Metal-Brush or Carbon-Brush
Voltage
3volt,3.3volt,3.7volt,4.5volt,5volt,6volt,7.4volt,9volt,
12volt,24volt
Speed 1rpm - 3500rpm
Rated Torque
≤6.2kg.cm
Shaft Size 4mm D shaft(Can Customized)
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.


Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

22mm dc planetary gearbox with 180 brush motor
22mm Ig22gm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reduction Motors

22mm dc planetary gearbox with 2230 brush motor
22mm Ig22gm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reduction Motors

22mm Ig22gm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reduction Motors
