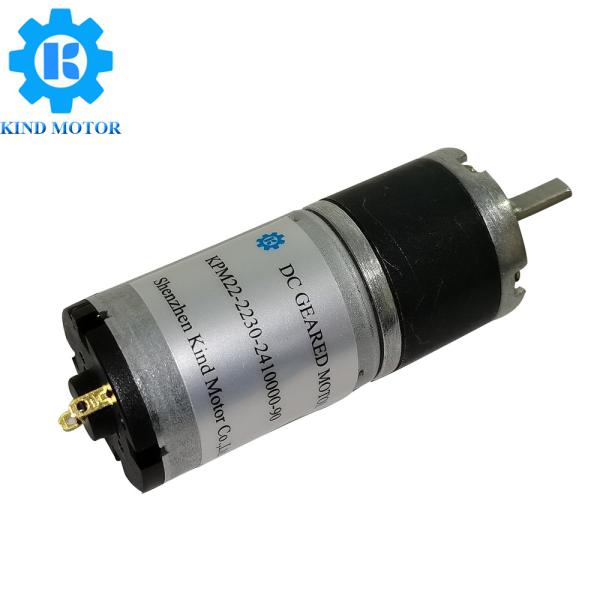

Low Noise Dc 6v 12v 24v 22mm Micro Planetary Gear Motor For Intelligent Products
Low Noise Dc 6v 12v 24v 22mm Micro Planetary Gear Motor For Intelligent Products
Low Noise Dc 6v 12v 24v 22mm Micro Planetary Gear Motor For Intelligent Products
Low Noise Dc 6v 12v 24v 22mm Micro Planetary Gear Motor For Intelligent Products
Specifications
Brand Name :
Kind Motor
Model Number :
KPM22-2230
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
200
Price :
$5.5-$12.5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3 volt～36 volt
Speed(rpm) :
1 rpm-3600 rpm
Gears material :
Stainless steel
Brush Type :
Carbon-brushes/Metal-brushes
Type :
DC Planetary geared motor
Rated Torque :
7.1kg.cm
Stall Torque :
12.2kg.cm
Continuous current(a) :
≤7.7A
Output power :
≤4.6W
Weight :
67g
Description

High torque low noise dc 3v 6v 8v 12v 24v 22mm diameter micro planetary

gear motor for electric curtain and lock

Product introduction
This is 22mm diameter micro planetary gear motor,the voltage can be 3vdc 5vdc 6vdc

7.2vdc 8vdc 9vdc 12vdc 24vdc ,the planetary gearbox have high torque,it's can with flat

130 180 motors and round 2230 2238 motor,the motors parameters can customized,the

motors can with encoder,the encoders have 12ppr and 16ppr.

Brand:Kind Motor

Model KPM22-180
Gears Material All-Metal
Gearbox Reduction ratio 4/1-2418/1
Motor model 2230 round brush motor,length is 30mm
2238 round brush motor,length is 38mm
Brush Type Carbon-Brush
Voltage
3.0 volt,3.7 volt,4.5 volt,5.0 volt,6.0 volt,7.4 volt,9.0 volt,
12.0 volt,24.0 volt
Speed 1rpm ～3500rpm
Rated Torque
≤7.1kg.cm
Shaft Size 4mm D shaft(Can Customized)
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.


Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

22mm planetary reduction gearbox with dc 12v 24v 2230 brush motor

Low Noise Dc 6v 12v 24v 22mm Micro Planetary Gear Motor For Intelligent Products

22mm planetary trduction gearbox with dc 6v 12v 24v fk180 brush motor
Low Noise Dc 6v 12v 24v 22mm Micro Planetary Gear Motor For Intelligent Products

Low Noise Dc 6v 12v 24v 22mm Micro Planetary Gear Motor For Intelligent Products
