36mm 10watt 20watt 30watt 40watt Dc 12volt 24volt Planet Gearmotors
36mm 10watt 20watt 30watt 40watt Dc 12volt 24volt Planet Gearmotors
36mm 10watt 20watt 30watt 40watt Dc 12volt 24volt Planet Gearmotors
36mm 10watt 20watt 30watt 40watt Dc 12volt 24volt Planet Gearmotors
Specifications
Brand Name :
Kind Motor
Model Number :
KPM36-555
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
200
Price :
$6-$15/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
5volt-36volt
Speed(rpm) :
0.5rpm～2200rpm
Gears material :
Metal gears
Brush Type :
Brushes/Brushless
Type :
dc planetary gear motor
Rated Torque :
≤36kg.cm
Stall Torque :
≤92kg.cm
Continuous current(a) :
≤16A
Output power :
≤65W
Weight :
420g
Description

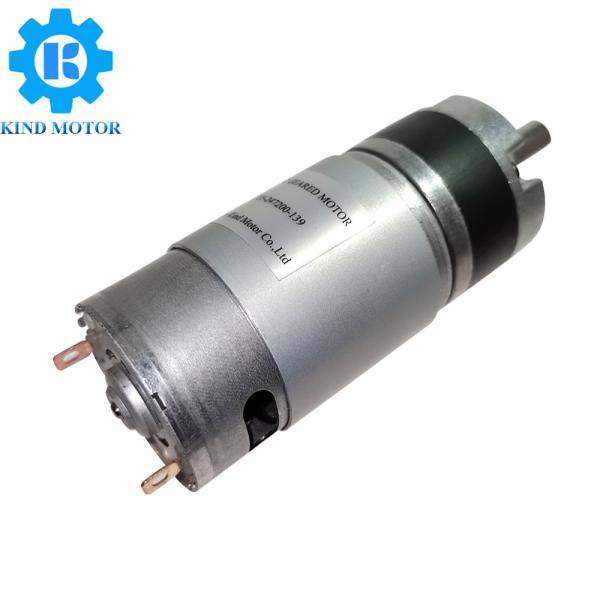

High power 36mm 10watt 20watt 30watt 40watt 50watt 60watt dc 12vdc 24vdc planet

gearmotors

Product introduction
This is 36mm 10watt 20watt 30watt 40watt 50watt 60watt dc 12volt 24volt planet gearmotors,

it's havehigh torque,the gearbox can with carbon-brushed motors and brushless motor,brushless

motor have lower noise and longer lifetime,the voltage can be 6 volt 7.2 volt 8 volt 9 volt 12 volt

24 volt,the parameters and shaft can customized,the motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KPM36-555
Gears Material All-Metal
Gearbox Reduction ratio 1/5～1/3736
Motor model KRS545 brushed motor,length is 50mm
KRS555 brushed motor,length is 57mm
Brush Type Carbon-Brush/Brushless
Voltage 5 vdc,6 vdc,7.4 vdc,9 vdc,12 vdc,14.4 vdc,18 vdc,24 vdc
Speed 0.5rpm ～2200rpm
Rated Torque
≤3.6Nm
Shaft Size 8mm D shaft(Can Customized)
Typical Application
Robot, Electric Valve,Toy,Massage instrument,Beauty equipment,Medical industry,ATM equipment,Electric curtain,Smart home,Equipment,etc.

Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

Low speed 36mm 10watt 20watt 30watt 40watt 50watt 60watt dc 12volt 24volt planet gearmotors
36mm 10watt 20watt 30watt 40watt Dc 12volt 24volt Planet Gearmotors
36mm 10watt 20watt 30watt 40watt Dc 12volt 24volt Planet Gearmotors
