N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder
N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder
N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder
N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder
Specifications
Brand Name :
Kind Motor
Model Number :
KGM12-N20-EN
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
1PCS
Price :
$3-$5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
1.5 volt-24 volt
Speed(rpm) :
5rpm-6200 rpm
Gears material :
Stainless steel
Brush Type :
Metal brushed/Carbon brushed
Type :
Gearbox Reducer Motor
Rated Torque :
≤200mNm
Stall Torque :
≤300mNm
Continuous current(a) :
≤3.6A
Output power :
≤1.8W
Weight :
15.5g
Description

High quality N10 N20 N30 mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt

reduction gearbox motor with encoder

Product introduction

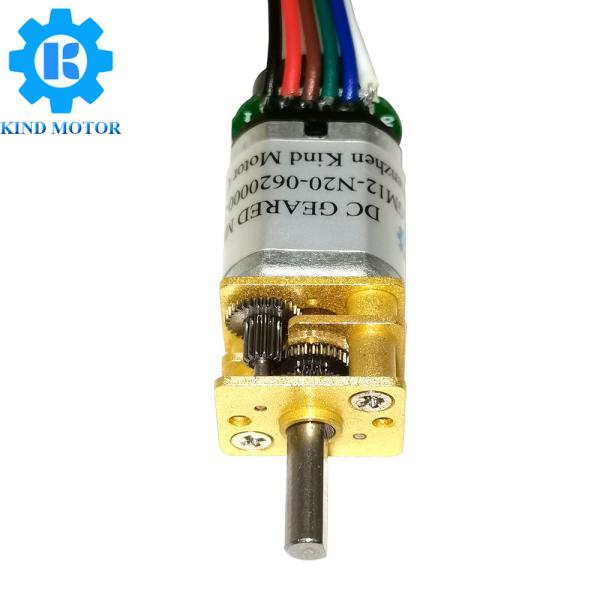

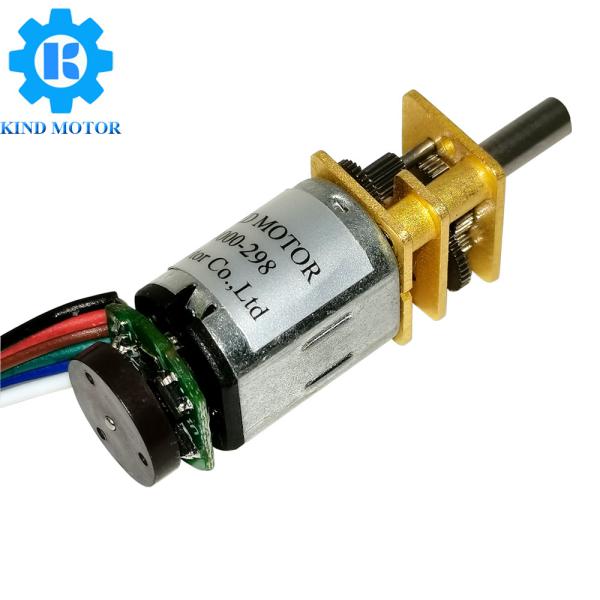

This is diameter 12mm dc N10 N20 N30 motor with 10×12mm all-metal flat gearbox,the

motor have precious metal-brushed and carbon-brushed.N10,N20 and N30 have different

length,the torque is different.the gearbox have1:5,1:10,1:20,1:30,1:52,1:75,1:100,1:150,

1:210,1:250,1:298,1:380,1:422,1:600,1:1000 reduction ratio,you can choose according

your requirement,the motors parameters can customized,the encoder is 3ppr.

Brand:Kind Motor

Model KGM12-N20
Gears Material Stainless steel
Gearbox Reduction ratio 5:1～1000:1
Motor model N10 ,N20 ,N30 and N50 Brushes Motor
Brush Type Precious Metal-Brushed/Carbon-Brushed
Voltage 1.5 v,3 v,3.7 v 4.5 v,5 v,6 v,7.4 v,8 v,9 v,12 v,24 v
Speed 3rpm-6200rpm
Rated Torque
＜200mNm
Shaft Size 3mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

DC 3V-6V 6-12V N20 Metal-brush motor with spur metal gearbox

N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder

N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder

DC 6v 12v 24v N20 Carbon-brush motor with metal spur gearbox

N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder

DC N10 Metal-brush motor with metal spur gearbox

N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder

DC N30 Metal-brush motor with metal spur gearbox

N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder

N10 N20 N30 Mini DC 3volt 3.3volt 5volt 6volt 12volt 24volt Reduction Gearbox Motor With Encoder
