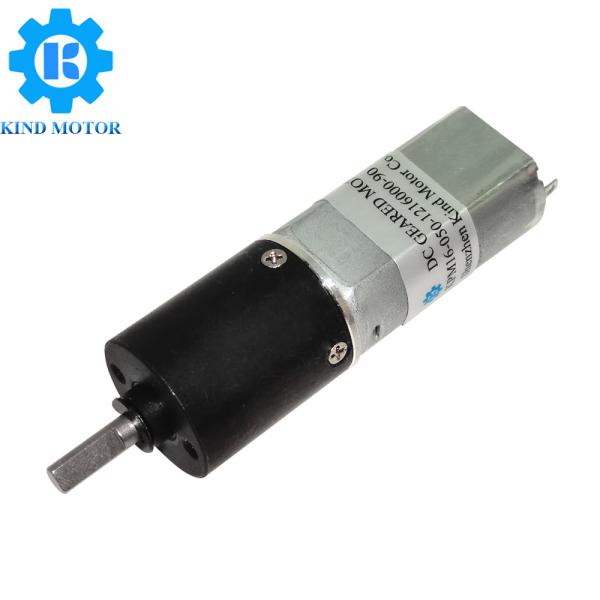

Micro 16mm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reducer Motors
Micro 16mm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reducer Motors
Micro 16mm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reducer Motors
Micro 16mm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reducer Motors
Specifications
Brand Name :
Kind Motor
Model Number :
KPM16-050
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
200
Price :
$2.0-$4.1/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3v～24v
Speed(rpm) :
1rpm～5000rpm
Gears material :
Stainless steel
Brush Type :
Metal brushed or Carbon brushed
Type :
16mm DC Planetary geared motor
Rated Torque :
＜5Kg.cm
Stall Torque :
＜9Kg.cm
Continuous current(a) :
≤6A
Output power :
≤3W
Weight :
40g
Description

High quality low noise micro 16mm kpm16-050 kpm16-030 5vdc 6vdc 12vdc

24vdc metal planetary gearbox reducer motors

Product introduction
This is 16mm kpm16-050 kpm16-030 5vdc 6vdc 12vdc 24vdc metal planetary gearbox reducer

motors,it's planetary gearbox,planetary gearbox is stronger than spur gaerbox,the motors have

precious metal brushed and carbon-brushed,the gearbox have many different reduction ratio,the

motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KPM16-050
Gears Material Metal
Gearbox Reduction ratio 1:4-1:2418
Motor model 030 motor,length is 18.6mm
050 motor,length is 26.7mm
Brush Type Precious Metal-Brush/Carbon-Brush
Voltage
3vdc,3.3vdc,3.7vdc,4.5vdc,5vdc,6vdc,7.4vdc,9vdc,
12vdc,24vdc
Speed 1rpm - 5000rpm
Rated Torque
≤9kg.cm
Shaft Size 3mm D shaft(Can Customized)
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.

Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

050 brushed dc motor speed reduction planetary gearbox
Micro 16mm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reducer Motors
Micro 16mm 6vdc 12vdc 24vdc Metal Planetary Gearbox Reducer Motors
