DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor
DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor
DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor
DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor
Specifications
Brand Name :
Kind Motor
Model Number :
KGM12-N20
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
1PCS
Price :
$1.8-$3.5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
1.5 v-24v
Speed(rpm) :
5 rpm-6000rpm
Gears material :
Stainless steel
Brush Type :
Metal brush/Carbon brush
Type :
Gearbox Reduction Motor
Rated Torque :
≤0.2Nm
Stall Torque :
≤0.3Nm
Continuous current(a) :
≤2A
Output power :
≤2.1W
Weight :
10.5g
Description

DC small pololu micro 12mm ga12-n20 1.5volt 3volt 5volt 6volt 7.4volt 12volt

24volt n10 n20 n30 all-metal gear reduction motor

Product introduction

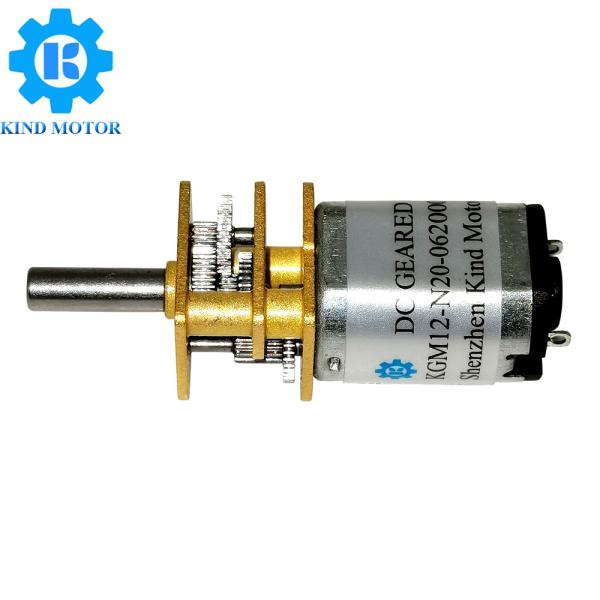

This is diameter 10×12mm metal flat gearbox with dc N10 N20 N30 motor,the motor have

precious metal and carbon brush.These small brushed DC gearmotors are available in a wide

range of gear ratios—from 1:5 to 1:1000 —and with six different motors: high-power, medium

power, and low power 6 V motors with precious metal brushes, and high-power 6 V and 12 V

motors with longer-life carbon brushes. With the exception of the 1000:1 gear ratio versions,

all of the micro metal gearmotors have the same physical dimensions.

Brand:Kind Motor

Model KGM12-N20
Gears Material stainless steel
Gearbox Reduction ratio 1:5-1:1000
Motor model N10 ,N20 ,N30 and N50 Brushed Motor
Brush Type Precious Metal-Brush/Carbon-Brush
Voltage 1.5v-24v
Speed 5rpm-6000rpm
Rated Torque
＜2kg.cm
Shaft Size 3mm D shaft
Typical Application
Smart Lock,, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,3D printing pen,Beauty equipment,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

N20 Metal-brush motor with metal reduction gearbox

DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor

DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor

N20 Carbon-brush motor with metal reduction gearbox

DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor

N10 Metal-brush motor with metal reduction gearbox

DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor

N30 Metal-brush motor with metal reduction gearbox

DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor

DC micro 12mm 3volt 5volt 6volt 2volt 24volt n10 n20 n30 all-metal gearmotor
