Mini Flat 12mm Dc 3vdc 5vdc 6vdc 12vdc 24vdc Metal Brush Motor For Toys
Mini Flat 12mm Dc 3vdc 5vdc 6vdc 12vdc 24vdc Metal Brush Motor For Toys
Mini Flat 12mm Dc 3vdc 5vdc 6vdc 12vdc 24vdc Metal Brush Motor For Toys
Mini Flat 12mm Dc 3vdc 5vdc 6vdc 12vdc 24vdc Metal Brush Motor For Toys
Specifications
Brand Name :
Kind Motor
Model Number :
KFF-N20
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
1000pcs
Price :
$0.4-$0.8/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
1.2v-24v
Speed(rpm) :
3100rpm～35000rpm
Type :
DC Brushed Motor
Stall Torque :
≤30g.cm
Construction :
Permanent Magnet
Continuous current(a) :
≤650mA
Output power :
≤2.1W
Weight :
5.5g
Description

Mini flat 12mm dc 3vdc 5vdc 6vdc 12vdc 24vdc metal brush motor for toys

Product introduction

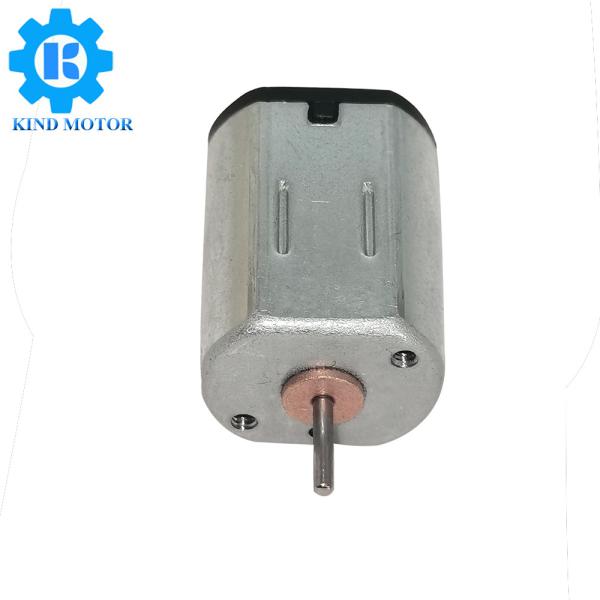

This is N20 dc brushed motor,the motor can with metal-brushed or carbon-brushed,the voltage

can be 3vdc 5vdc 6vdc 12vdc 24vdc,this 12mm diameter motor have different length,it's have

N10,N20,N30,N50 motor,they have different torque,the parameters can customized the motor

can with gearbox

Brand:Kind Motor

Model KFF-N20
Brush Type Carbon-brush/Metal-brush
Voltage 1.5v,3v,5v,6v,12v,24v
Speed 3100rpm-35000rpm
Stall Torque
＜30g.cm
Shaft Size 1mm diameter shaft
Typical Application
Fan,Home Appliances,Toy,Massage instrument,Home Appliances,Electric tool,Pump,,Beauty equipment,Medical Apparatus,etc.


Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized


Mini Flat 12mm Dc 3vdc 5vdc 6vdc 12vdc 24vdc Metal Brush Motor For Toys
Mini Flat 12mm Dc 3vdc 5vdc 6vdc 12vdc 24vdc Metal Brush Motor For Toys
