Micro 12 Volt Electric Motors With Gear Reduction 3.2A Continuous Current
Micro 12 Volt Electric Motors With Gear Reduction 3.2A Continuous Current
Micro 12 Volt Electric Motors With Gear Reduction 3.2A Continuous Current
Micro 12 Volt Electric Motors With Gear Reduction 3.2A Continuous Current
Specifications
Brand Name :
Kind Motor
Model Number :
KGM25-370
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$2.5-$5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3 volt～24 volt
Speed(rpm) :
2 rpm-5000rpm
Gears material :
Stainless steel
Brush Type :
Brushes /Brushless
Type :
DC Gear motors
Rated Torque :
≤0.62Nm
Stall Torque :
≤0.81Nm
Continuous current(a) :
≤3.2A
Output power :
≤5.2Watt
Weight :
61g
Description

Low noise diameter 25mm dc 5volt 6volt 12volt 24volt 310 370 brush brushless

motor with reduction gearbox

Product introduction

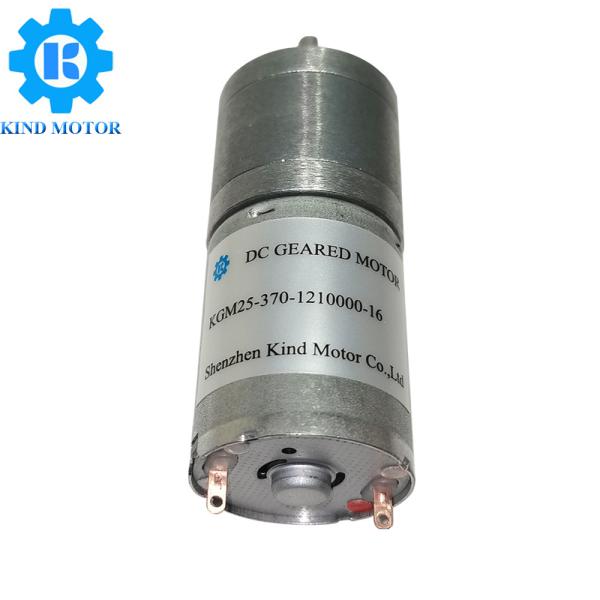

This is 25mm dc 5volt 6volt 12volt 24volt 310 370 brush motor with reduction gearbox,the

spur metal gearbox can with 310(length 18mm),370(length 30mm) brushes motor and 2418,

2430 brushless motors,the gearbox have many reduction ratio,different reduction ratio have

different length,the motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KGM25-370
Gears Material All Metal
Gearbox Reduction ratio 1:4 ～1:500
Motor model

310 Brushes Motor,2418 Brushless Motor (length is 18mm)

370 Brushes Motor,2430 Brushless Motor (length is 30mm)
Brush Type Metal-brush and Carbon-brush
Voltage 3.0volt,4.5volt,5.0volt,6.0volt,7.4volt,9.0volt,12.0volt,24.0volt
Speed 2 rpm ～ 5000rpm
Rated Torque
≤6.2kg.cm
Shaft Size 4mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

370 brush motor with reduction gearbox
