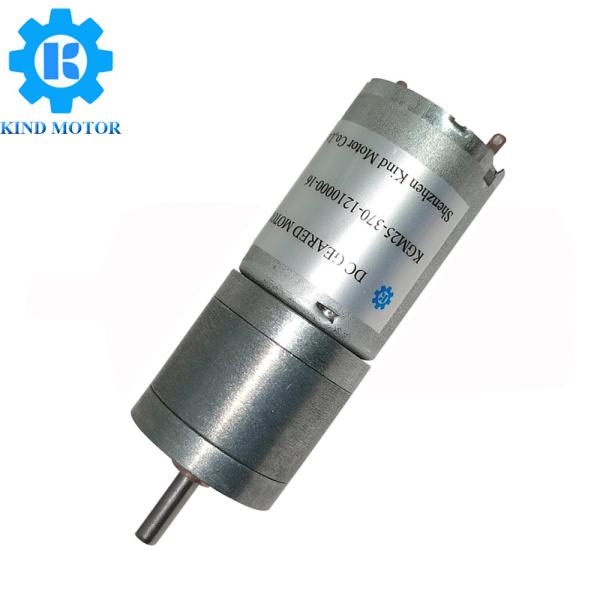

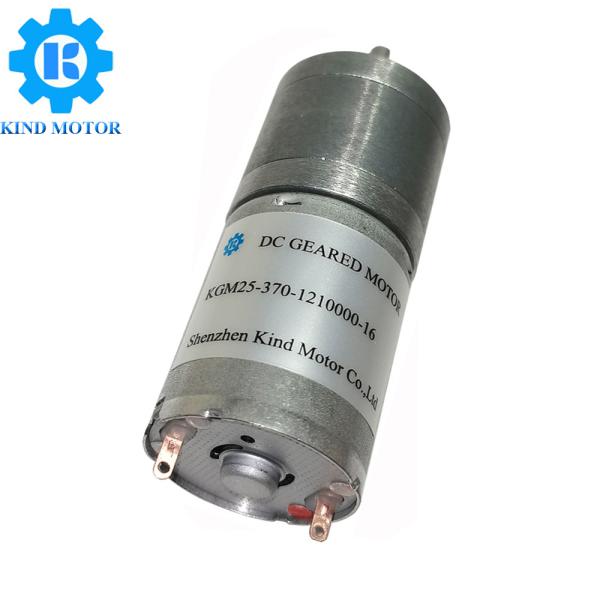

Brush Micro Gear Motor With Encoder 500 Rpm 25Dx48L Size
Brush Micro Gear Motor With Encoder 500 Rpm 25Dx48L Size
Brush Micro Gear Motor With Encoder 500 Rpm 25Dx48L Size
Brush Micro Gear Motor With Encoder 500 Rpm 25Dx48L Size
Specifications
Brand Name :
Kind Motor
Model Number :
KGM25-370
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$2.5-$5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3.0 vdc～24.0 vdc
Speed(rpm) :
2 rpm-5100rpm
Gears material :
Stainless steel
Brush Type :
Brush /Brushless
Type :
DC Gearbox Reduction motors
Rated Torque :
≤6.5Kg.cm
Stall Torque :
≤8.5Kg.cm
Continuous current(a) :
≤3.5A
Output power :
≤5.5Watt
Weight :
65g
Description

25mm 4.4:1 9.7:1 20.4:1 34:1 47:1 75:1 99:1 Metal Gearmotor 25Dx48L

25Dx50L 25Dx52L 25Dx54L mm HP 6V 12V 24V with Encoder

Product introduction

This is Metal Gearmotor 25D mm HP 6V 12V 24V with Encoder,the gearbox can with
370 brush motor and 2418,2430 brushless motors,the gearbox have 10:1,16:1,21:1,35:1,47:1,59:1,78:1,103:1,130:1,172:1,226:1,286:1,378:1,500:1 reduction
ratio,choose different reduction ratio have different speed and torque,the motors can with
12cpr and 16cpr encoder.

Brand:Kind Motor

Model KGM25-370
Gears Material All-Metal
Gearbox Reduction ratio 1:4～1:500
Motor model

310 Brush Motor,2418 Brushless Motor (length is 18mm)

370 Brush Motor,2430 Brushless Motor (length is 30mm)
Brush Type Metal-brushed and Carbon-brushed
Voltage 3.0 v,4.5 v,5.0 v,6.0 v,7.4 v,9.0 v,12.0 v,24.0 v
Speed 2rpm ～5000rpm
Rated Torque
≤6.5kg.cm
Shaft Size 4mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

25mm Metal Gearmotor 6V 12V 24V

Brush Micro Gear Motor With Encoder 500 Rpm 25Dx48L Size

Brush Micro Gear Motor With Encoder 500 Rpm 25Dx48L Size
