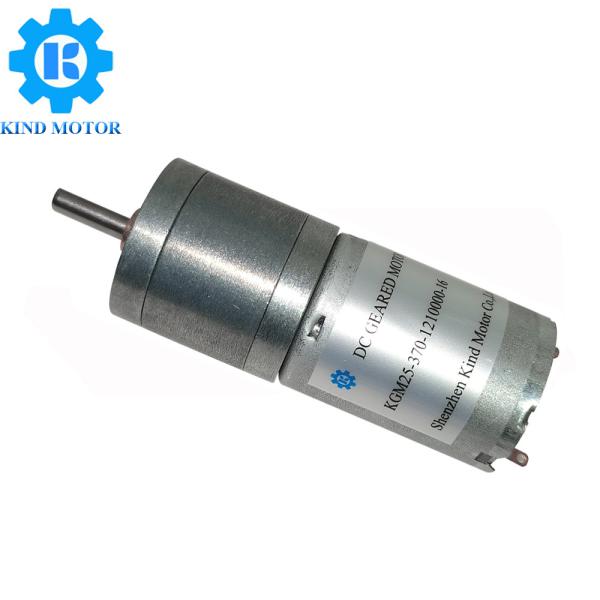

25mm Micro DC Geared Motor 100 rpm With 4mm D shaft
25mm Micro DC Geared Motor 100 rpm With 4mm D shaft
25mm Micro DC Geared Motor 100 rpm With 4mm D shaft
25mm Micro DC Geared Motor 100 rpm With 4mm D shaft
Specifications
Brand Name :
Kind Motor
Model Number :
KGM25-370
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$2.5-$5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3 vdc～24 vdc
Speed(rpm) :
2 rpm-5000 rpm
Gears material :
Stainless steel
Brush Type :
Brushed /Brushless
Type :
DC Gearbox motors
Rated Torque :
≤0.62Nm
Stall Torque :
≤0.86Nm
Continuous current(a) :
≤3.3A
Output power :
≤5.3Watt
Weight :
62g
Description

4mm D shaft gm25 370 small 25mm 5v 6v 12v 24v 15w dc 5rpm 10rpm 15rpm

20rpm 30rpm 50rpm 60rpm 100rpm 600rpm gear box geared motor

Product introduction

This is gm25 370 gear box geared motor,the spur gearbox can with 310,370 brushes motor

and 2418,2430 brushless motors,the gearbox have many reduction ratio,choose different

reduction ratio have different speed and torque,the motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KGM25-370
Gears Material All Metal
Gearbox Reduction ratio 4:1 ～500:1
Motor model

310 Brushes Motor,2418 Brushless Motor (length is 18mm)

370 Brushes Motor,2430 Brushless Motor (length is 30mm)
Brush Type Metal-brushed and Carbon-brushed
Voltage 3.0vdc,4.5vdc,5.0vdc,6.0vdc,7.4vdc,9.0vdc,12.0vdc,24.0vdc
Speed 2rpm ～5000rpm
Rated Torque
≤6.2kg.cm
Shaft Size 4mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
