Metal 12v Dc Gear Motor 300 Rpm 4000gcm Rated Torque For Multiapplication
Metal 12v Dc Gear Motor 300 Rpm 4000gcm Rated Torque For Multiapplication
Metal 12v Dc Gear Motor 300 Rpm 4000gcm Rated Torque For Multiapplication
Metal 12v Dc Gear Motor 300 Rpm 4000gcm Rated Torque For Multiapplication
Metal 12v Dc Gear Motor 300 Rpm 4000gcm Rated Torque For Multiapplication
Metal 12v Dc Gear Motor 300 Rpm 4000gcm Rated Torque For Multiapplication
Specifications
Brand Name :
Kind Motor
Model Number :
KGM20-130
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$2.5-$5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3.0vdc～24.0 vdc
Speed(rpm) :
3～5500 rpm
Gears material :
Stainless steel
Brush Type :
Carbon Brushed /Metal Brushed
Type :
Gearmotor
Rated Torque :
≤4.1Kg.cm
Stall Torque :
≤6.2Kg.cm
Continuous current(a) :
≤3.2A
Output power :
≤3.9W
Weight :
45g
Description

High quality Pololu GM20-130 GM20-180 DC 6V 12V 24V Precious

Metal Brush 20D Gearmotors factory suppliers

Product introduction

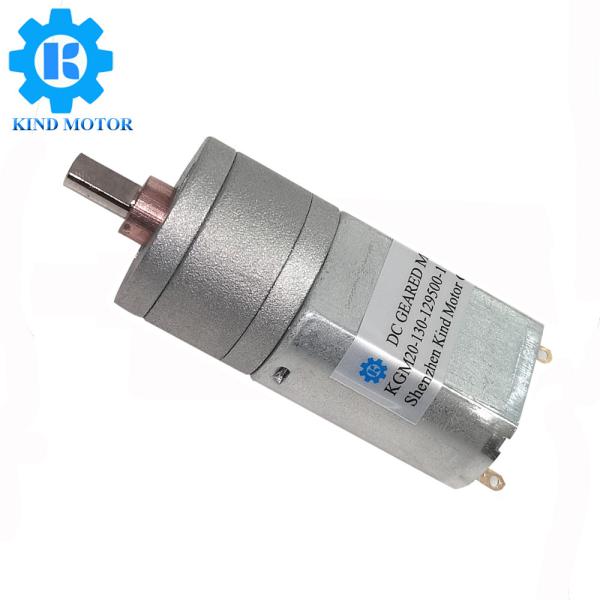

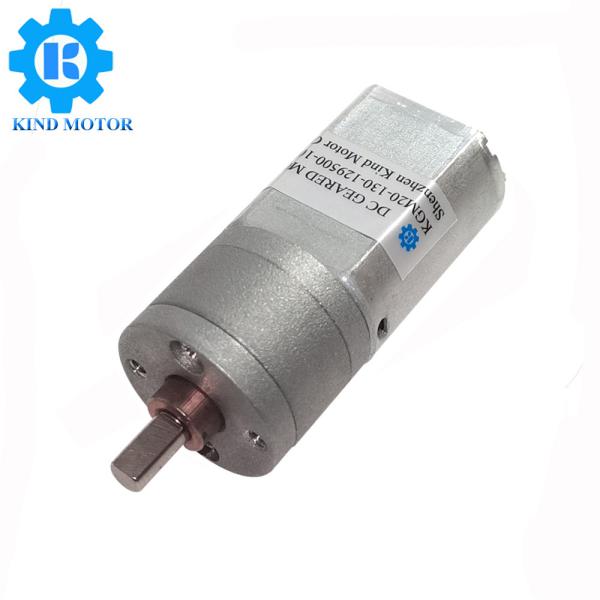

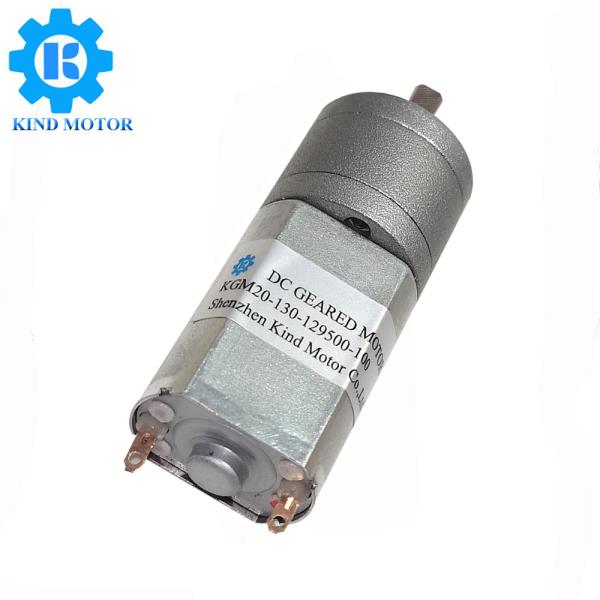

This is GM20-130 20mm DC 6V 12V 24V Precious Metal Brush Gearmotors with

encoder,the motors have metal brushed and carbon-brushed,carbon-brushed have

longer lifetime.the gearbox can with fk130 and fk180 brushed motors,the motors

length is different,the gearbox have many different reduction ratio to choose,the

motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KGM20-180
Gears Material Stainless steel
Gearbox Reduction ratio 9:1 to 488:1
Motor model

130 Brushed Motor(length is 25mm)

180 Brushed Motor(length is 28mm)
Brush Type Metal-Brushed/Carbon-Brushed
Voltage 4.5 volt,5 volt,,6 volt,,7.4 volt,,9 volt,12 volt,,24 volt
Speed 3 rpm to 5500 rpm
Rated Torque
＜4000g.cm
Shaft Size 4mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Electric toothbrush,Medical industry,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

GM20-180 DC 6V 12V 24V Brush (CB) 20D Gearmotors
