Specifications
Brand Name :
Kind Motor
Model Number :
KGM20-130
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$2.5-$5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3.0vdc~24.0 vdc
Speed(rpm) :
3~5500 rpm
Gears material :
Stainless steel
Brush Type :
Carbon Brushed /Metal Brushed
Type :
Gearmotor
Rated Torque :
≤4.2Kg.cm
Stall Torque :
≤6.2Kg.cm
Continuous current(a) :
≤6.2A
Output power :
≤3.9W
Weight :
45g
Description

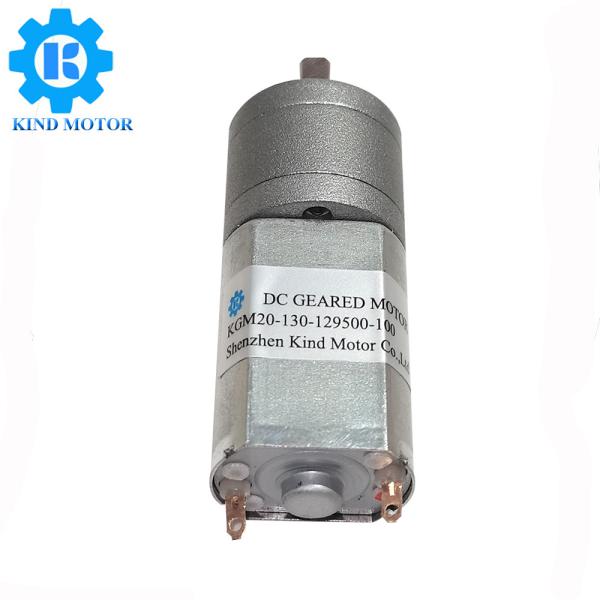

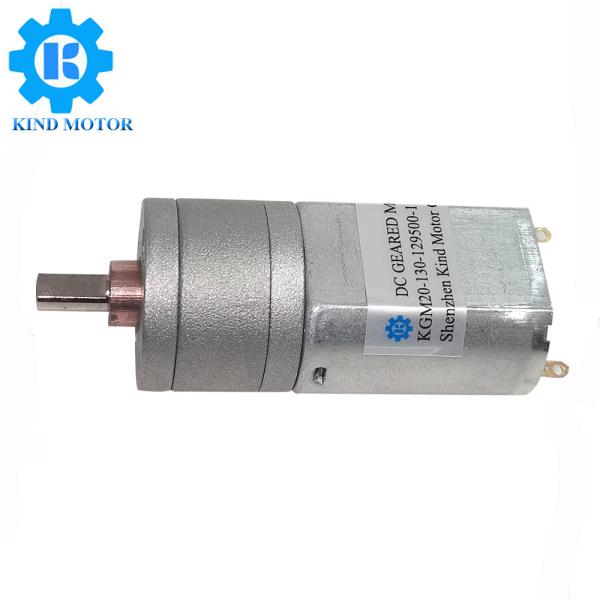

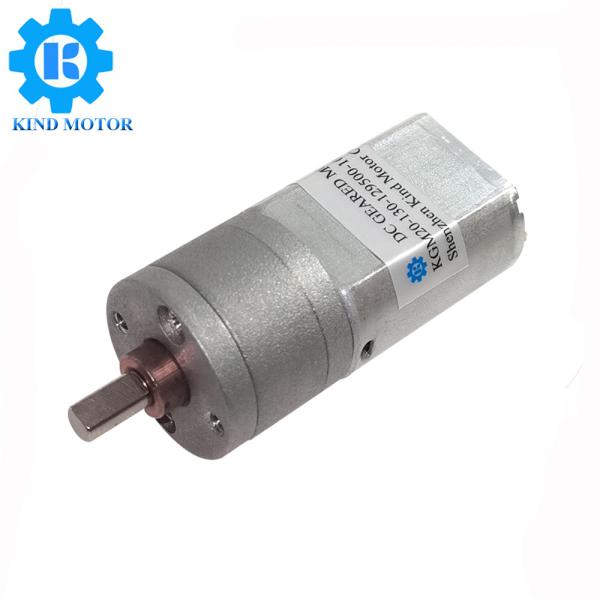

GM20-130 GM20-180 20mm DC 5V 6V 8V 9V 12V 24V Carbon Brush (CB)

20D Gearmotors with encoder

Product introduction

This is GM20-130 20mm DC 6V 12V 24V Carbon Brush (CB) 20D Gearmotors with encoder,

the motors have metal brushed and carbon-brushed,the 20mm gearbox can with fk130 and fk180

brushed motors,the motors length is different,the gearbox have many different reduction ratio to

choose,the motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KGM20-180
Gears Material Stainless steel
Gearbox Reduction ratio 1:9-1:488
Motor model

130 Brushed Motor,length is 25mm

180 Brushed Motor,length is 28mm

Brush Type Metal-Brush/Carbon-Brush
Voltage 4.5 volt,5 volt,,6 volt,,7.4 volt,,9 volt,12 volt,,24 volt
Speed 3 rpm to 5500 rpm
Rated Torque
<4200g.cm
Shaft Size 4mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Electric toothbrush,Medical industry,etc.


Product Parameters

ODM & OEM

If you need other size and patameters,diameter from 8mm~60mm can be chosen
The parameters and shaft size can customized

GM20-180 DC 6V 12V 24V Carbon Brush (CB) 20D Gearmotors

Carbon Brushed 12v Dc Motor High Torque , 45g 100 Rpm Dc Gear Motor

Carbon Brushed 12v Dc Motor High Torque , 45g 100 Rpm Dc Gear Motor
