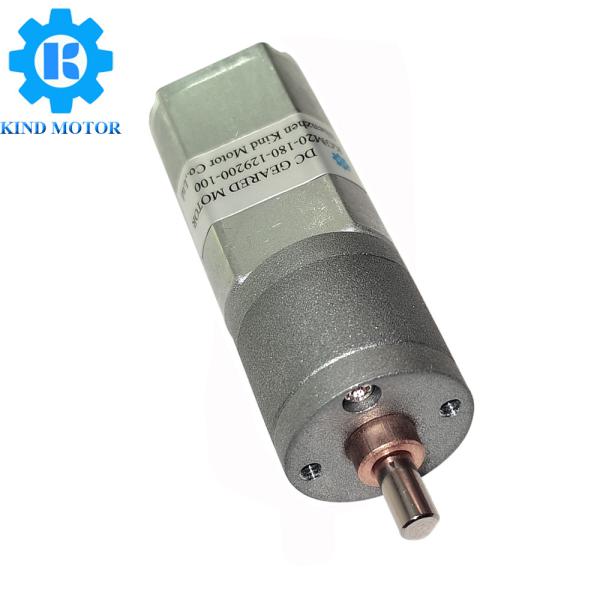

Stainless steel Micro DC Geared Motor heavy duty 8.2A Continuous current 55g
Stainless steel Micro DC Geared Motor heavy duty 8.2A Continuous current 55g
Stainless steel Micro DC Geared Motor heavy duty 8.2A Continuous current 55g
Stainless steel Micro DC Geared Motor heavy duty 8.2A Continuous current 55g
Stainless steel Micro DC Geared Motor heavy duty 8.2A Continuous current 55g
Stainless steel Micro DC Geared Motor heavy duty 8.2A Continuous current 55g
Specifications
Brand Name :
Kind Motor
Model Number :
KGM20-180
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$2.5-$5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3.0 vdc～24.0 vdc
Speed(rpm) :
5～5000 rpm
Gears material :
Stainless steel
Brush Type :
Brushed
Type :
Geared Motor
Rated Torque :
≤4.5Kg.cm
Stall Torque :
≤6.5Kg.cm
Continuous current(a) :
≤8.2A
Output power :
≤4.7W
Weight :
55g
Description

Magnetic Encoder Kit for 20D mm Metal Gearmotors assembled on a 20D

mm metal gearmotor with extended motor shaft

Product introduction

This is dc 20D mm metal gearmotor with magnetic encoder,the motors have precious metal

brushed and carbon-brushed,the 20mm gearbox can with fk130 and fk180 motors,the motor

length is different,the gearbox have many different reduction ratio to choose,the motors can

with encoder,the encoder have 12ppr and 16ppr.

Brand:Kind Motor

Model KGM20-180
Gears Material Stainless steel
Gearbox Reduction ratio 1:9 to 1:488
Motor model

FK130 Brushed Motor(length is 25mm)

FK180 Brushed Motor(length is 28mm)
Brush Type Metal-Brushed/Carbon-Brushed
Voltage 4.5 volt,5 volt,,6 volt,,7.4 volt,,9 volt,12 volt,,24 volt
Speed 5 rpm to 5000 rpm
Rated Torque
≤4500g.cm
Shaft Size 4mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Electric toothbrush,Medical industry,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

FK180 Carbon brushes motors with 20mm Metal Spur gearbox

Stainless steel Micro DC Geared Motor heavy duty 8.2A Continuous current 55g

Stainless steel Micro DC Geared Motor heavy duty 8.2A Continuous current 55g
