Carbon Brush Motor Dc , 3.8W Gear Motor 12v High Torque 6300gCm
Carbon Brush Motor Dc , 3.8W Gear Motor 12v High Torque 6300gCm
Carbon Brush Motor Dc , 3.8W Gear Motor 12v High Torque 6300gCm
Carbon Brush Motor Dc , 3.8W Gear Motor 12v High Torque 6300gCm
Carbon Brush Motor Dc , 3.8W Gear Motor 12v High Torque 6300gCm
Carbon Brush Motor Dc , 3.8W Gear Motor 12v High Torque 6300gCm
Specifications
Brand Name :
Kind Motor
Model Number :
KGM20-130
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$2.5-$5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3.0volt～24.0 volt
Speed(rpm) :
3rpm～5500 rpm
Gears material :
Stainless steel
Brush Type :
Carbon Brushed /Metal Brushed
Type :
Gearmotors
Rated Torque :
≤4.3Kg.cm
Stall Torque :
≤6.3Kg.cm
Continuous current(a) :
≤6.3A
Output power :
≤3.8W
Weight :
43g
Description

Micro 20mm DC 5V 6V 12V 24V FK130 FK180 dc brush motor with 20mm

metal gearbox suppliers

Product introduction

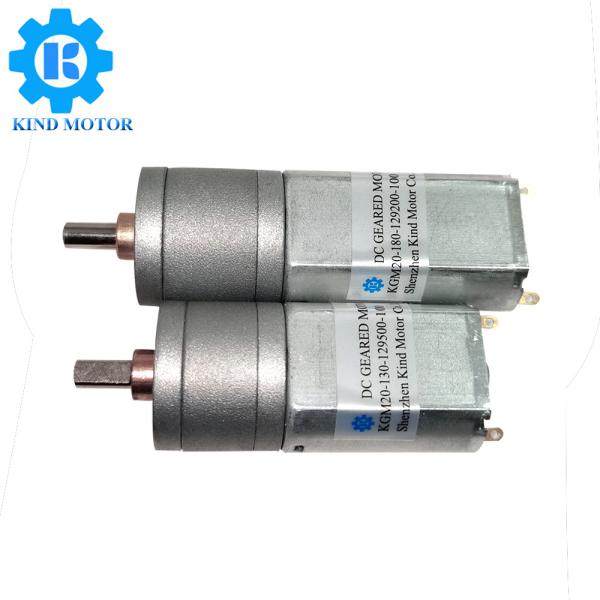

This is Micro DC 5V 6V 12V 24V FK130 FK180 dc brush motor with 20mm metal gearbox,

the motors have metal-brushed and carbon-brushed,the metal gearbox can with fk130 and fk180

brushed motors,the motors have same diameter 20mm,fk130 length is 25mm,fk180 length is 32mm,

the gearbox have many different reduction ratio,the motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KGM20-180
Gears Material Metal
Gearbox Reduction ratio 1:9 to 1:488
Motor model

FK130 Brushes Motor(length is 25mm)

FK180 Brushes Motor(length is 28mm)
Brush Type Metal-Brushed/Carbon-Brushed
Voltage 4.5 volt,5 volt,6 volt,7.4 volt,9 volt,12 volt,24 volt
Speed 3 rpm - 5500 rpm
Rated Torque
＜4300g.cm
Shaft Size 4mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Electric toothbrush,Medical industry,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

FK180 dc brush motor with 20mm metal gearbox

Carbon Brush Motor Dc , 3.8W Gear Motor 12v High Torque 6300gCm

Carbon Brush Motor Dc , 3.8W Gear Motor 12v High Torque 6300gCm
