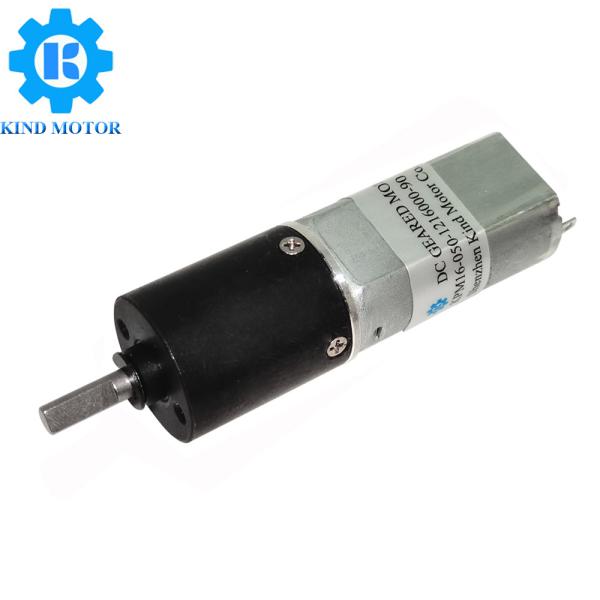

900mNm Brushed DC Geared Motor , 12 Volt Gear Reduction Motor 45g
900mNm Brushed DC Geared Motor , 12 Volt Gear Reduction Motor 45g
900mNm Brushed DC Geared Motor , 12 Volt Gear Reduction Motor 45g
900mNm Brushed DC Geared Motor , 12 Volt Gear Reduction Motor 45g
Specifications
Brand Name :
Kind Motor
Model Number :
KPM16-050
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
1000pcs
Price :
$6.0-$12.0/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3 volt～24 volt
Speed(rpm) :
1 rpm～4900 rpm
Gears material :
Stainless steel
Brush Type :
Brushed
Type :
DC Planetary reduction gearbox motor
Rated Torque :
≤420mNm
Stall Torque :
≤900mNm
Continuous current(a) :
≤5.7A
Output power :
≤2.7W
Weight :
45g
Description

China factory supply dc 3v 6v 12v 24v 030 050 brush motor with

16mm metal planetary reduction gearbox

Product introduction
This is 030 050 brush motor with 16mm metal planetary reduction gearbox,

the reduction gearbox is planetary,it's stronger than spur gearbox,if the on

load torque is high,spur gearbox can't reach your requirement,you can

choose planetary gearbox,the planetary gearbox can with 030 and 050

brush motors,the gearbox have many different reduction ratio,the motors

can with encoder,the encoder have 12ppr and 16ppr.

Brand:Kind Motor

Model KPM16-050
Gears Material Metal
Gearbox Reduction ratio 4:1-2418:1
Motor model FF030 brushes motor,length is 18.6mm
FF050 brushes motor,length is 26.7mm
Brush Type Metal-Brush/Carbon-Brush
Voltage
3 volt,3.3 volt,3.7 volt,4.5 volt,5 volt,6 volt,7.4 volt,9 volt,
12 volt,24 volt
Speed 1 rpm - 5000 rpm
Rated Torque
≤≤420mNm
Shaft Size 3mm D shaft(Can Customized)
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.


Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

050 brush motor with 16mm metal planetary reduction gearbox
900mNm Brushed DC Geared Motor , 12 Volt Gear Reduction Motor 45g

900mNm Brushed DC Geared Motor , 12 Volt Gear Reduction Motor 45g
