Micro DC 3v 3.3v 3.7v 6v 10mm Diameter Plastic Gear Reduction Motor
Micro DC 3v 3.3v 3.7v 6v 10mm Diameter Plastic Gear Reduction Motor
Micro DC 3v 3.3v 3.7v 6v 10mm Diameter Plastic Gear Reduction Motor
Micro DC 3v 3.3v 3.7v 6v 10mm Diameter Plastic Gear Reduction Motor
Specifications
Brand Name :
Kind Motor
Model Number :
KPS10-M10/KPS10-M20
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
1PCS
Price :
$0.7-$1.5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
1.0v-12.0v
Speed(rpm) :
20-230rpm
Gears material :
Plastic gears
Brush Type :
Metal-brushes
Type :
DC Plastic Planetary Geared Motor
Rared Torque :
0.01kg.cm-1kg.cm
Stall Torque :
＜0.1Nm
Continuous current(a) :
0.02~2.1A
Output power :
0.05-0.8W
Weight :
8.3g
Description

China factory supply 10mm M10 M20 M30 1.5vdc 3vdc 3.7vdc 6vdc plastic planetary

gear motor


Product introduction:

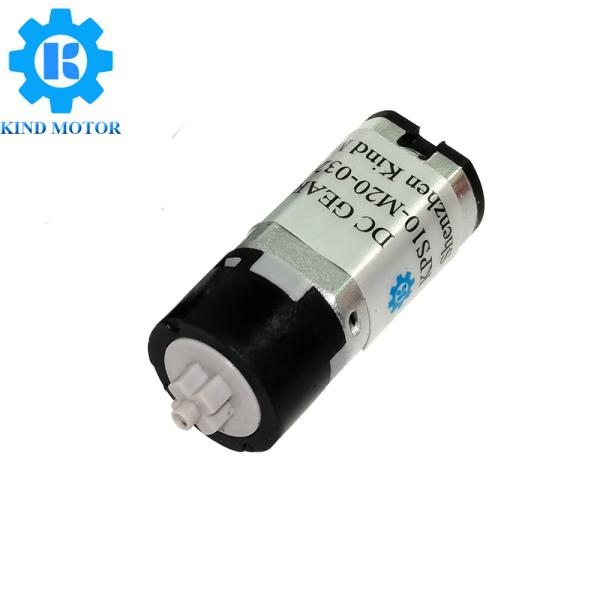

This is 10mm diameter dc precious metal brushed motor with 10mm plastic planetary gearbox,

the gearbox have different shaft size,the gearbox can with M10,M20 and M30 brushed motor,

the motors can customized voltage and speed,they have low price and high quality.

Brand:Kind Motor

Model KPS10-M10/KPS10-M20
Gears Material Plastic
Gearbox Reduction ratio 171:1
Motor model FF-M10 ,FF-M20 and FF-M30 Metal Brushed Motor
Brush Type Precious Metal-Brush
Voltage
1.5 volt,3 volt,3.3 volt,3.7 volt,4.5 volt,5 volt,6 volt,7.4 volt,9 volt,12 volt
Speed
20rpm to 230rpm
Torque
＜0.1Nm
Shaft Size
 Gear shaft or + shaft
Typical Application
Electric Lock, Safebox, Robot, Electric Valve, Toy,Massage instrument,Eyelash brush,Beauty equipment,etc.



Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 6mm~60mm can be chosen
█The parameters and shaft size can customized

DC 3volt 6volt M10 Metal-brushed motor with 10mm plastic reduction gearbox
Micro DC 3v 3.3v 3.7v 6v 10mm Diameter Plastic Gear Reduction Motor

DC 3volt 3.7volt 6volt M20 Metal-brushed motor with 10mm plastic reduction

gearbox,the shaft is plastic gear,it's have 10 and 8 Teeth output shaft

Micro DC 3v 3.3v 3.7v 6v 10mm Diameter Plastic Gear Reduction Motor

Micro DC 3v 3.3v 3.7v 6v 10mm Diameter Plastic Gear Reduction Motor
