Micro Dc 3v 3.3v 3.6v 6v 10mm KPS10-M20 Planetary Plastic Gear Motor With Gear Shaft
Micro Dc 3v 3.3v 3.6v 6v 10mm KPS10-M20 Planetary Plastic Gear Motor With Gear Shaft
Micro Dc 3v 3.3v 3.6v 6v 10mm KPS10-M20 Planetary Plastic Gear Motor With Gear Shaft
Micro Dc 3v 3.3v 3.6v 6v 10mm KPS10-M20 Planetary Plastic Gear Motor With Gear Shaft
Specifications
Brand Name :
Kind Motor
Model Number :
KPS10-M10/KPS10-M20
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
1PCS
Price :
$0.7-$1.5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
1.0volt-12.0volt
Speed(rpm) :
22-230rpm
Gears material :
Plastic gears
Brush Type :
Metal brushes
Type :
DC Plastic Planetary Gearbox Motor
Rared Torque :
0.01kg.cm-0.5kg.cm
Stall Torque :
＜0.09Nm
Continuous current(a) :
0.02~1.9A
Output power :
0.05-0.7W
Weight :
8.1g
Description

Micro dc 3vdc 3.3vdc 3.6vdc 6vdc 10mm KPS10-M20 planetary plastic gear

motor with gear shaft

Product introduction:
This is 10mm M10 and M20 brushed motor with 10mm plastic planetary gearbox,the
reduction ratio is 1/171,the shaft have + and gear type,if you need other size,the shaft
size can customized according your requirement,the motors can production many different
parameters,we can according your requirement to customized.

Brand:Kind Motor

Model KPS10-M10/KPS10-M20
Gears Material Plastic
Gearbox Reduction ratio 171:1
Motor model FF-M10 ,FF-M20 and FF-M30 Metal Brushed Motor
Brush Type Precious Metal-Brush
Voltage
1.5 vdc,3 vdc,3.3 vdc,3.7 vdc,4.5 vdc,5 vdc,6 vdc,7.4 vdc,9 vdc,12 vdc
Speed
22rpm to 230rpm
Torque
＜0.09Nm
Shaft Size
 Gear shaft or + shaft
Typical Application
Electric Lock, Safebox, Robot, Electric Valve, Toy,Massage instrument,Eyelash brush,Beauty equipment,etc.



Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 6mm~60mm can be chosen
█The parameters and shaft size can customized

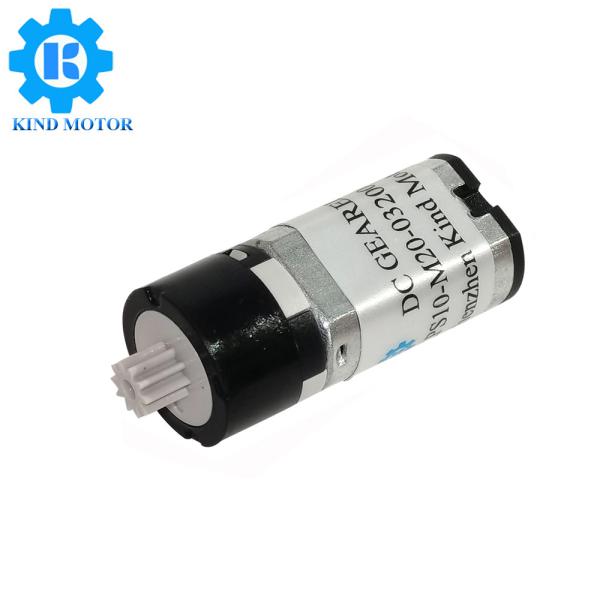

10mm DC 3volt 6volt M10 brushed plastic planetary geared motor
Micro Dc 3v 3.3v 3.6v 6v 10mm KPS10-M20 Planetary Plastic Gear Motor With Gear Shaft

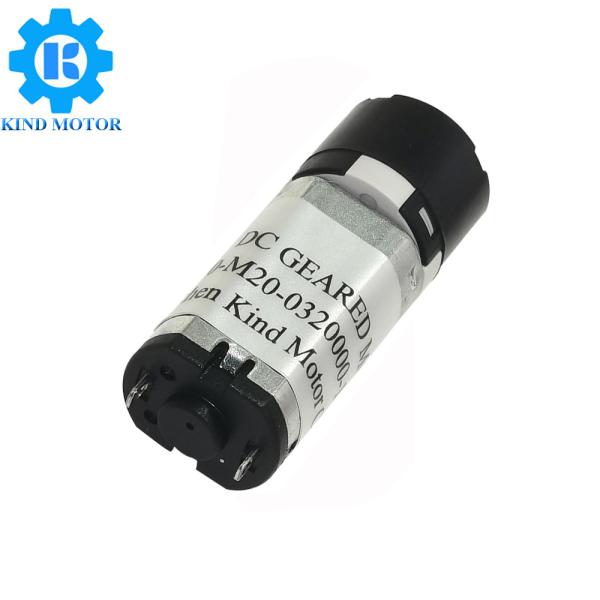

10mm DC 3volt 6volt M20 brushed plastic planetary geared motor,the shaft
is plastic gear
Micro Dc 3v 3.3v 3.6v 6v 10mm KPS10-M20 Planetary Plastic Gear Motor With Gear Shaft

Micro Dc 3v 3.3v 3.6v 6v 10mm KPS10-M20 Planetary Plastic Gear Motor With Gear Shaft
