Micro dc 1.5volt 3volt 5volt 6volt 10mm plastic planetary gear reducer motor
Micro dc 1.5volt 3volt 5volt 6volt 10mm plastic planetary gear reducer motor
Micro dc 1.5volt 3volt 5volt 6volt 10mm plastic planetary gear reducer motor
Micro dc 1.5volt 3volt 5volt 6volt 10mm plastic planetary gear reducer motor
Specifications
Brand Name :
Kind Motor
Model Number :
KPS10-M10-171
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
1PCS
Price :
$0.7-$1.5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
1.5volt-12volt
Speed(rpm) :
30rpm-220rpm
Gears material :
Plastic reducer gearbox
Brush Type :
Precious Metal brushed
Type :
DC Plastic Gear Motor
Rated Torque :
≤0.6Kg.cm
Stall Torque :
＜1Kg.cm
Continuous current(a) :
≤2A
Output power :
≤0.9W
Weight :
6g
Description

Micro dc 1.5volt 3volt 5volt 6volt 10mm plastic planetary gear reducer motor

Product introduction

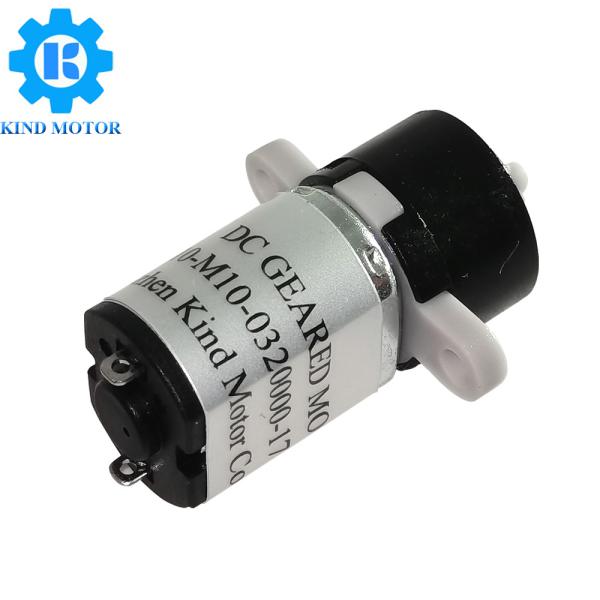

This is M10 M20 10mm diameter dc precious metal brush motor with 10mm plastic planetary

reduction gearbox,the shaft have cross and gear shaft,it's have low speed and low price.

Brand:Kind Motor

Model KPS10-M10/KPS10-M20
Gears Material Plastic
Gearbox Reduction ratio 171
Motor model M10, M20 and M30 Brushed Motor
Brush Type Precious Metal Brushed
Voltage 1.5vdc,3vdc,3.3vdc,3.7vdc,4.5vdc,5vdc,6vdc,7.4vdc,9vdc,12vdc
Speed 30rpm to 220rpm
Torque
＜1kg.cm
Shaft Size Gear shaft or + shaft
Typical Application
Electric Lock, Safebox, Robot, Electric Valve, Toy,Massage instrument,Eyelash brush,Medical instruments



Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 6mm~60mm can be chosen
█The parameters and shaft size can customized

DC 3v 3.3v 3.7v 6v M10 Metal-brush motor with 10mm plastic gearbox

Micro dc 1.5volt 3volt 5volt 6volt 10mm plastic planetary gear reducer motor

DC 3v 3.7v 6v M20 Metal-brush motor with 10mm plastic gearbox

Micro dc 1.5volt 3volt 5volt 6volt 10mm plastic planetary gear reducer motor

Micro dc 1.5volt 3volt 5volt 6volt 10mm plastic planetary gear reducer motor
