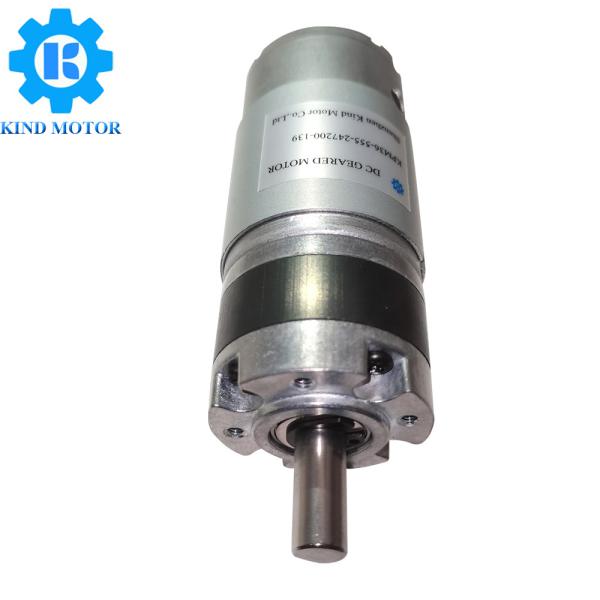

15A 12v Brushed Dc Motor , Stainless steel 10 Rpm Gear Motor 3.5Nm
15A 12v Brushed Dc Motor , Stainless steel 10 Rpm Gear Motor 3.5Nm
15A 12v Brushed Dc Motor , Stainless steel 10 Rpm Gear Motor 3.5Nm
15A 12v Brushed Dc Motor , Stainless steel 10 Rpm Gear Motor 3.5Nm
Specifications
Brand Name :
Kind Motor
Model Number :
KPM36-555
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$6-$15/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
5v-36v
Speed(rpm) :
0.5rpm～2100rpm
Gears material :
Stainless steel
Brush Type :
Brushes/Brushless
Type :
planetary geared motor
Rated Torque :
≤3.5Nm
Stall Torque :
≤9.5Nm
Continuous current(a) :
≤15A
Output power :
≤60W
Weight :
410g
Description

Low speed 36mm 12v 24v 10w 20w 30w 40w 50w 60w gmp36-555 metal planetary

geared dc brush motor

Product introduction
This is 36mm 12v 24v 10w 20w 30w 40w 50w 60w gmp36-555 metal planetary geared dc brush

motor,the planetary gearbox can withstand high torque,it's can with DC carbon-brushed motors

and DC brushless motor,the voltage can be 6 v 7.2 v 8 v 9 v 12 v 24 v,the parameters and shaft

can customized according requirement,the brushed motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KPM36-555
Gears Material All Metal
Gearbox Reduction ratio 1:5～1:3736
Motor model KRS545 brush motor,length is 50mm
KRS555 brush motor,length is 57mm
Brush Type Carbon-Brush/Brushless
Voltage 5 vdc,6 vdc,7.4 vdc,9 vdc,12 vdc,14.4 vdc,18 vdc,24 vdc
Speed 0.5rpm ～2100rpm
Rated Torque
≤3.5Nm
Shaft Size 8mm D shaft(Can Customized)
Typical Application
Robot, Electric Valve,Toy,Massage instrument,Beauty equipment,Medical industry,ATM equipment,Electric curtain,Equipmentetc.


Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

RS555 dc 12v 24v caron-brushed motor with 36mm planetary gearbox
15A 12v Brushed Dc Motor , Stainless steel 10 Rpm Gear Motor 3.5Nm
15A 12v Brushed Dc Motor , Stainless steel 10 Rpm Gear Motor 3.5Nm
