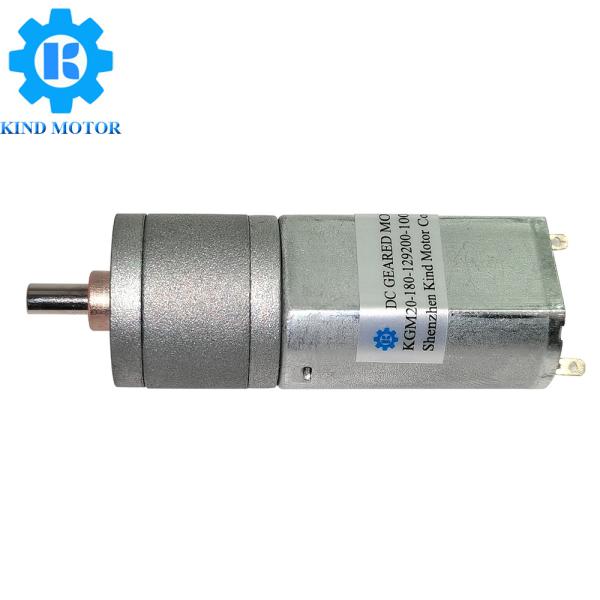

20mm 12v Gear Reduction Motor , Metal Brushed Pmdc Geared Motor
20mm 12v Gear Reduction Motor , Metal Brushed Pmdc Geared Motor
20mm 12v Gear Reduction Motor , Metal Brushed Pmdc Geared Motor
20mm 12v Gear Reduction Motor , Metal Brushed Pmdc Geared Motor
20mm 12v Gear Reduction Motor , Metal Brushed Pmdc Geared Motor
20mm 12v Gear Reduction Motor , Metal Brushed Pmdc Geared Motor
Specifications
Brand Name :
Kind Motor
Model Number :
KGM20-180
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
500pcs
Price :
$2.5-$5/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
3 volt～24 volt
Speed(rpm) :
5rpm～5000 rpm
Gears material :
Stainless steel
Brush Type :
Metal-brushes/Carbon-brushes
Type :
Gearbox Reduction Motor
Rated Torque :
≤600mNm
Continuous current(a) :
≤8A
Output power :
≤4.5W
Weight :
50g
Description

PMDC Pololu long-life 20D 20mm metal-brush carbon-brush dc 3v 3.7v 4.5v

5v 6v 7v 7.4v 9v 12v 24v metal reduction gearmotors

Product introduction

This is 3-24v dc 130 180 metal reduction gearmotors,the motors have precious metal

brushed and carbon-brushed.130 and 180 have same diameter 20mm,130 motor length is

25mm,180 motor length 32mm,180 motor have higher torque,the motors can with encoder

Brand:Kind Motor

Model KGM20-180
Gears Material Stainless steel
Gearbox Reduction ratio 1:9-1:488
Motor model

130 Brushes Motor,length is 25mm

180 Brushes Motor,length is 28mm
Brush Type Metal-Brushed/Carbon-Brushed
Voltage 4.5vdc,5vdc,6vdc,7.4vdc,9vdc,12vdc,24vdc
Speed 5rpm-5000rpm
Rated Torque
＜4000g.cm
Shaft Size 4mm D shaft
Typical Application
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Electric toothbrush,Medical industry,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

20mm Metal gearbox with 180 Carbon-brushes motors

20mm 12v Gear Reduction Motor , Metal Brushed Pmdc Geared Motor

20mm 12v Gear Reduction Motor , Metal Brushed Pmdc Geared Motor
