Specifications
Place of Origin :
China
Brand Name :
KINGLEADER
Model Number :
MKB-64FA-TB
Certification :
CE,FCC
MOQ :
1pcs
Price :
US$
Packaging Details :
1pcs/box, 10pcs/ctns
Delivery Time :
20days
Payment Terms :
T/T,Paypal
Supply Ability :
2000pcs/month
Keypad Button Material :
Stainless steel
Material of Front Panel :
Brushed stainless steel
Number of Keys :
65
Sealing Protection Level :
IP65
Interface: :
USB,PS/2 or USB+PS/2
Mounting Method :
Panel mounting
Description

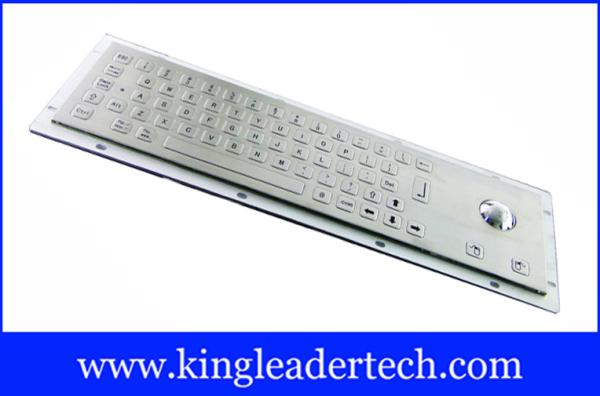

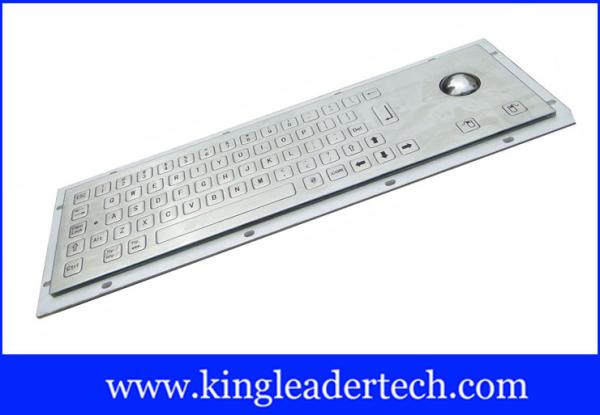

Rugged 65 Keys Industrial Kiosk Keyboard With Short Keys And Trackball

MKB-64FA-TB

Rugged stainless steel, water-proof, vandal-proof, panel-mount keyboard with 64 customizable flat keys and integrated trackball

Key Features:

1) 65 keys, with integrated trackball, panel mount
2) Flat/non-protruding short travel(0.45mm)keys, excellent tactile feel;
3) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places;
4) Built from stainless steel, high vandal-proof.
5) Dust-proof and liquid-proof, meet IP65 requirement
6) PS/2 or USB interface, easy to plug into computers directly
7) Customizable

Specifications

Material

Front panel & Keys: Brushed stainless steel

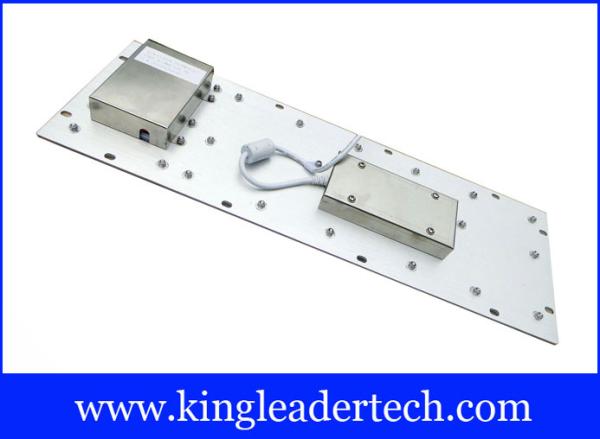

Back panel: Aluminum alloy

Key cap: Flat/non-protruding short travel key (0.45mm), raised Braille or sunk etched graphics

Trackball: Stainless steel trackball (Dia: 38mm)

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:150±15g

Key travel: 0.45mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

Weight: 1.80kg

Dimension:
Front panel: 392.00 x 110.00 x 30.10mm
Back panel: 416.00 x 134.00 x 30.10mm
