86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
Specifications
Place of Origin :
China
Brand Name :
KINGLEADER
Model Number :
MKB-F86A-TB
Certification :
FCC
MOQ :
1pcs
Price :
US$
Packaging Details :
1pcs/box, 10pcs/ctns
Delivery Time :
20days
Payment Terms :
T/T,Paypal
Supply Ability :
2000pcs/month
Application :
Telecommunication Equipment
Type :
Wired
Keypad button material :
Metal
Material :
#304 Stainless Steel
Interface type :
USB
Description

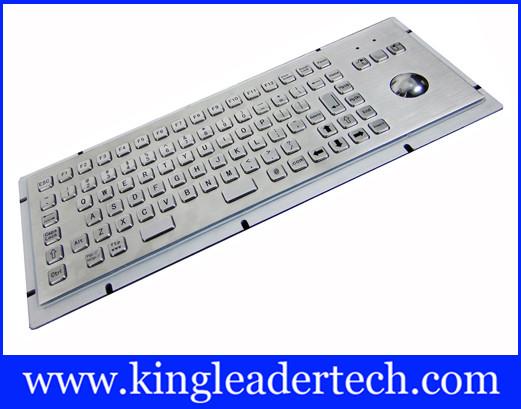

86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball

MKB-F86A-TB

Key Features:

-86 keys( of them 12 function keys), panel mount
- Integrated trackball;
- Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
- Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places
- Built from stainless steel, high vandal-proof.
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB connector, easy to plug into computer directly
- Customizable

Specifications

Material

Front panel & Keys: Brushed stainless steel

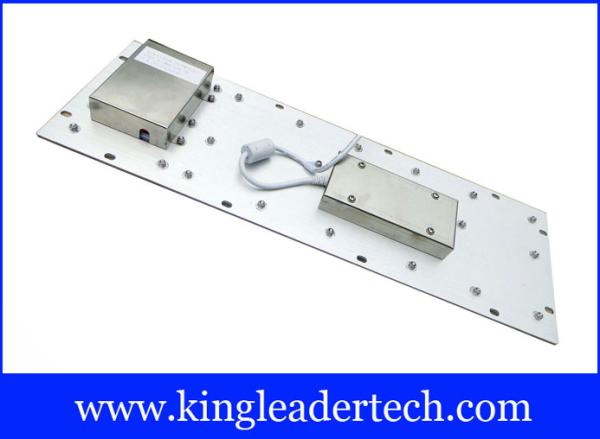

Back panel: Aluminum alloy

Key cap: Protruding full travel key(2.0mm) with etched or laser engraved graphics

Trackball: Stainless steel trackball (Dia: 38mm)

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

Weight: 2.2kg

Dimension:
Front panel: 392.00 x 135.00 x 32.10mm
Back panel: 416.00 x 159.00 x 32.10mm

86 Keys IP65 Rated Stainless Steel Industrial Kiosk Keyboard With Trackball
