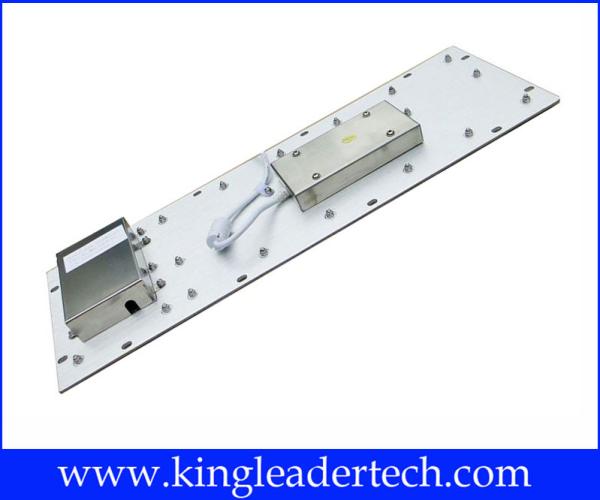

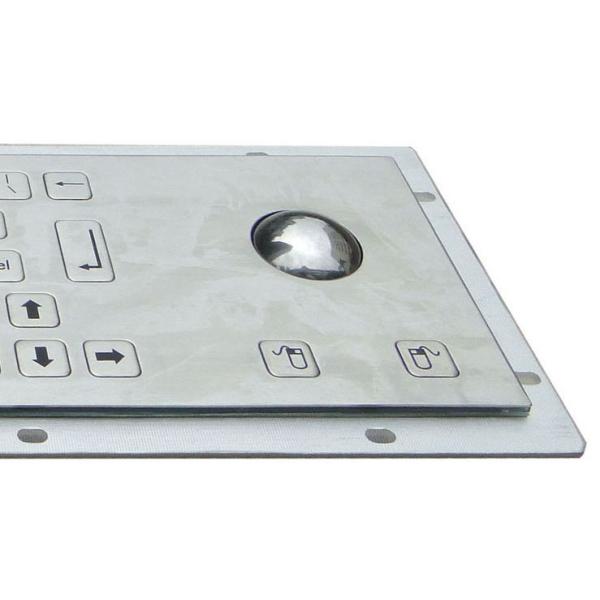

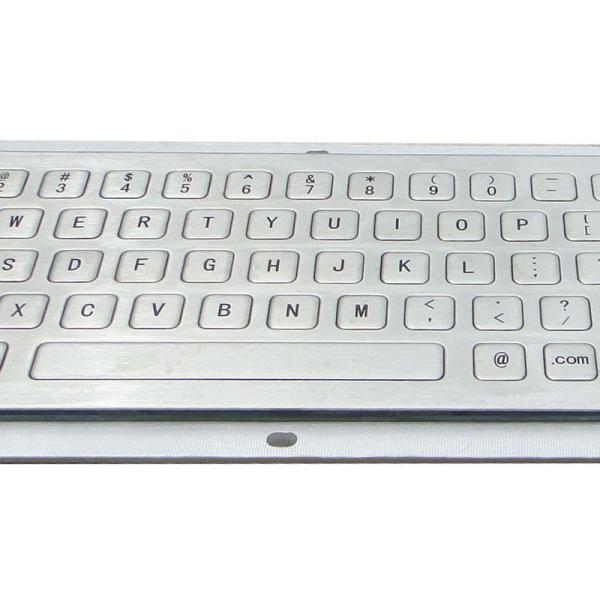

Waterproof Kiosk Or Industrial Computer Keyboard With Flat Keys And Trackball

MKB-64FA-TB

Rugged stainless steel, water-proof, vandal-proof, panel-mount keyboard with 64 customizable flat keys and integrated trackball

Key Features:

1) 65 keys, with integrated trackball, panel mount
2) Flat/non-protruding short travel(0.45mm)keys, excellent tactile feel;
3) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places;
4) Built from stainless steel, high vandal-proof.
5) Dust-proof and liquid-proof, meet IP65 requirement
6) PS/2 or USB interface, easy to plug into computers directly
7) Customizable

Specifications:

Material

- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Flat/non-protruding short travel key (0.45mm), raised Braille or sunk etched graphics
- Trackball: Stainless steel trackball (Dia: 38mm)

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant

Environmental Characteristics

- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:150±15g
- Key travel: 0.45mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4

Operation system

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and dimension

- Weight: 1.80kg
- Dimension:
Front panel: 392.00 x 110.00 x 30.10mm
Back panel: 416.00 x 134.00 x 30.10mm
