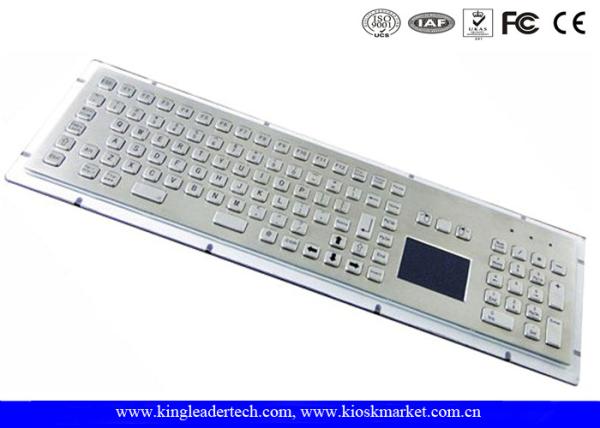

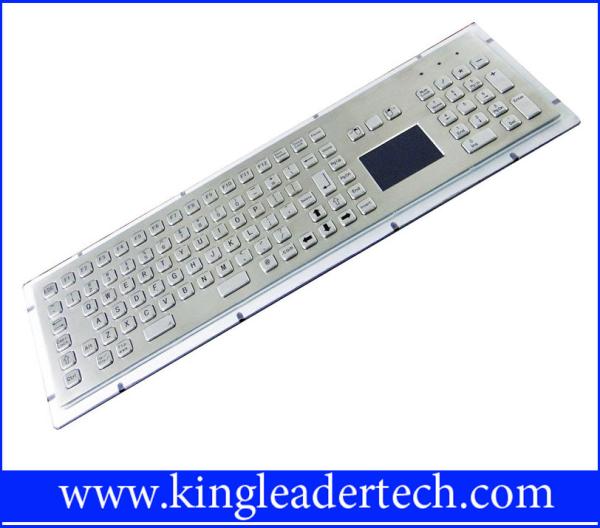

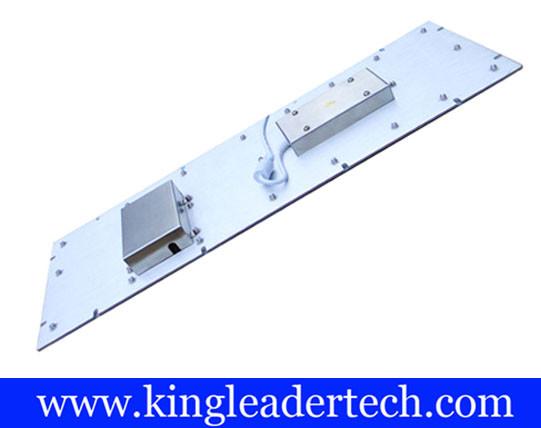

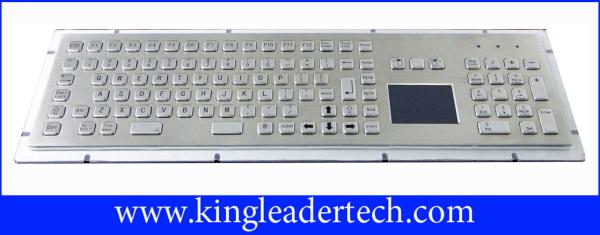

Customizable Industrial Keyboard With Touchpad Stainless Steel Vandal Proof
Customizable Industrial Keyboard With Touchpad Stainless Steel Vandal Proof
Customizable Industrial Keyboard With Touchpad Stainless Steel Vandal Proof
Customizable Industrial Keyboard With Touchpad Stainless Steel Vandal Proof
Customizable Industrial Keyboard With Touchpad Stainless Steel Vandal Proof
Customizable Industrial Keyboard With Touchpad Stainless Steel Vandal Proof
Customizable Industrial Keyboard With Touchpad Stainless Steel Vandal Proof
Customizable Industrial Keyboard With Touchpad Stainless Steel Vandal Proof
Specifications
Place of Origin :
China
Brand Name :
KINGLEADER
Certification :
CE,FCC
Model Number :
MKB-FN103A-TP
MOQ :
1pcs
Price :
US$
Packaging Details :
1pcs/box, 10pcs/ctns
Delivery Time :
20days
Payment Terms :
T/T,Paypal
Supply Ability :
2000pcs/month
Material of Front Panel :
Stainless Steel
Material of Back Panel :
Aluminum Alloy
Number of Keys :
103 Keys
Interface :
USB or PS/2
Protection Level :
IP65
Mounting Method :
Panel Mount From The Back Side
Layout :
English or Customized
Description

Customizable Industrial Keyboard With Touchpad Stainless Steel With High Vandal-Proof

PN:MKB-FN103A-TP

Key Features:

1) Integrated touchpad and numeric keypad;
2) 103 keys(of them 12 function keys), panel mount;
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
4) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into computer directly
8) Customizable

Specifications

Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Key cap: Protruding full travel key (2.0mm) with etched or laser engraved graphics

Touchpad cover: Composite

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.00mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

Weight: 2.20 kg

Dimension:
Front panel: 478.0 x 135.0 mm
Back panel: 502.0 x 159.0 mm, thickness:32.10mm(to the tallest component
