Specifications
Brand Name :
KINGLEADER
Model Number :
MKB-65FA-TB
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
US4
Payment Terms :
T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
2000pcs/ctn
Delivery Time :
20days
Packaging Details :
1pcs/box,10boxes/ctn
Number of Keys :
65 Flat Keys
Material of Front Panel :
Stainless Steel
Material of Back Panel :
Aluminum Alloy
Material of Keys :
Stainless Steel
Key Switch :
Metal Dome
Interface :
USB or PS/2
Mounting Method :
Panel Mount From The Rear Side
Mouse :
Trackball
Description

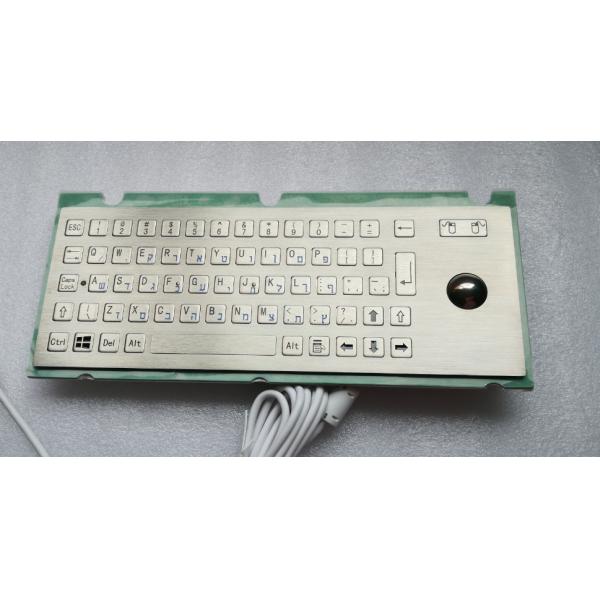

Mini Panel Mount Industrial Metal Keyboard With Flat Keys and Trackball Used for Machines

MKB-65FA-TB

Items Specifications
Product Description
  • Rugged stainless steel, water-proof, vandal-proof, panel-mount keyboard with 65 customizable flat keys and integrated trackball
Application

- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk etc

- Workstations or machines in factories

- Some special locations like toll gate,gas station,airport,seaport,underground mine etc.
Key Features

- 65 flat/flush keys,crispy tactile feedback

- With integrated laser trackball

- Panelmount from the back
- Built to operate in harsh environments

- Made of stainless steel,high resistance against vandalism
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface for option
- Customizable layout
Material - Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Trackball: Stainless steel trackball (Dia: 25mm)
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:150±15g
- Key travel: 0.45mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes
Certification
  • FCC,CE,RoHS
Dimension
  • Front panel: 282.00 x 106.00mm
  • Back panel: 292.00 x 125.00mm
  • Thickness:32.60mm
Weight
  • 1.50 kgs
