Specifications
Brand Name :
KINGLEADER
Model Number :
MKP110-16BL
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
US$40-80
Payment Terms :
T/T,Paypal, Western Union, L/C, D/A, D/P
Supply Ability :
2000pcs/month
Delivery Time :
20days
Packaging Details :
1pcs/box, 10pcs/ctns
Material of Front Panel :
304 Stainless Steel
Mounting Method :
Panel Mount
Matrix :
4x4
Interface :
11 Pin Connector
Layout :
Customization Available
Number of Keys :
16 Keys
Description

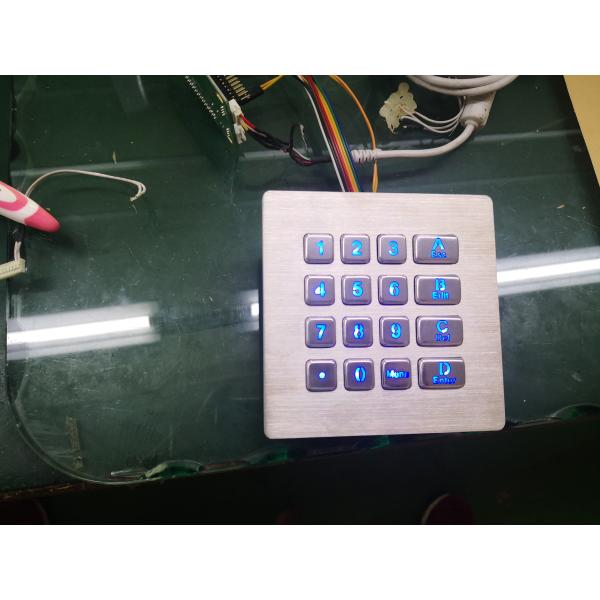

Customized Industrial Numeric Keypad with 16 Backlited Keys Used for Low-lit Environment

Part Number:MKP110-16BL

Door access keypad with Keys and front plate made of 304 stainless steel

Items Specifications
Product Description
  • Rugged stainless steel, waterproof, vandal-proof, panel-mount keypad with 16 backlit keys
Application

-All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk etc

-Workstations or machines in factories

-Some special locations like toll gate,gas station,airport,seaport,underground mine etc.
Key Features

- 16 backlit keys makes it ideal for application in low-lit environment

- Panelmount from the front
- Built to operate in harsh environments

- Made of stainless steel,high resistance against vandalism
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface for option
- Customizable layout
Material - Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:120±15g
- Key travel:2.00mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes
Certification
  • FCC,CE,RoHS
Dimension
  • Front panel: 110.00 x 110.00mm
Weight
  • 0.30 kgs

Customized Industrial Numeric Keypad Rugged Waterproof Panel Mount


Why us?

1, ISO9001:2008 certification
2, Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3, Reasonable price and fast response
4, Over 10 years of experience in rugged input device and touchscreen kiosk
5, OEM and ODM capability
6, Flexibility in customization and size of order
7, Trusted suppliers of many world-class famous brands in the industry
