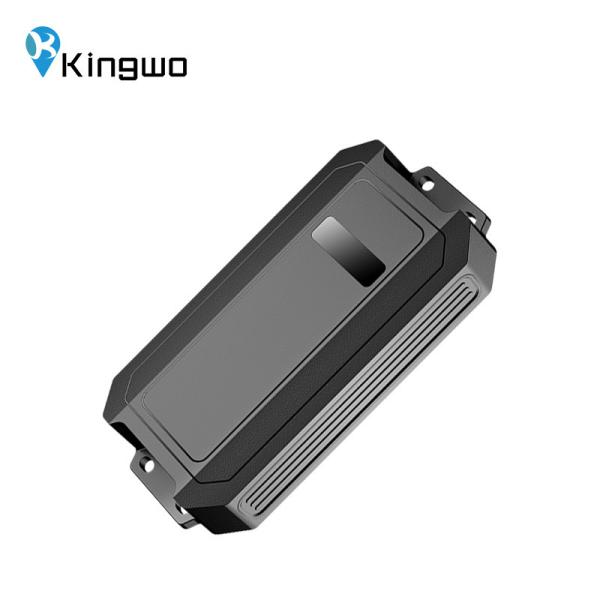

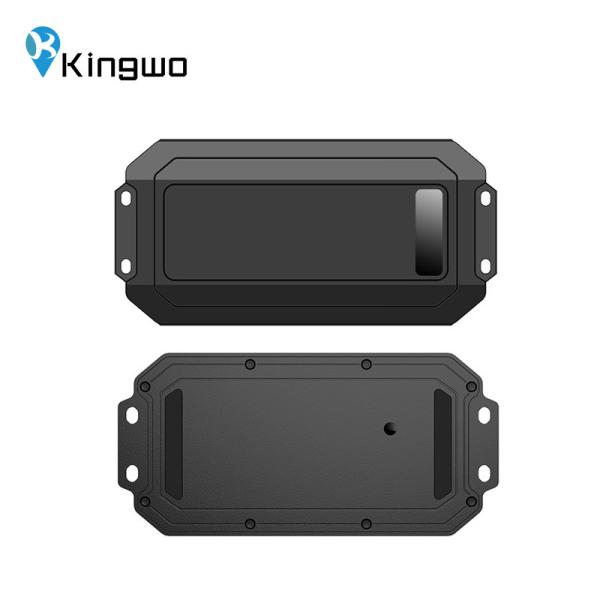

Black Plastic Lte Cat M1 Wifi Bluetooth GPS Tool Tracking Device locator IP68
Black Plastic Lte Cat M1 Wifi Bluetooth GPS Tool Tracking Device locator IP68
Black Plastic Lte Cat M1 Wifi Bluetooth GPS Tool Tracking Device locator IP68
Black Plastic Lte Cat M1 Wifi Bluetooth GPS Tool Tracking Device locator IP68
Black Plastic Lte Cat M1 Wifi Bluetooth GPS Tool Tracking Device locator IP68
Black Plastic Lte Cat M1 Wifi Bluetooth GPS Tool Tracking Device locator IP68
Specifications
Brand Name :
Kingwo
Model Number :
NT08EG
Certification :
FCC CE ROHS
Place of Origin :
CHINA
MOQ :
2 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs per month
Delivery Time :
10-20 days
Packaging Details :
50 pcs per carton , total weight around 25kg
Bluetooth :
Available
Wifi :
Available
Weight :
Approx 500g
Celluar :
North America Bands
Waterproof :
IP68
Material :
Black Plastic
Description

Lte CatM1 Long Term Wifi Location Bluetooth Gateway Equipments GPS Assets Tracker

NT08EG is a Lte CatM1 Long Term Wifi Location Bluetooth Gateway Equipments GPS Assets Tracker , the device is with IP67 water and dusty proof standard, it can detect different events including removal, motion, collision alarm etc.

Features:

1. Location Tracking

2. Events monitoring

3. Unauthorized motion detect

4. Center No. for data security protection

5. Long term battery

6. Magnets and screws

7. Replaceable batteries

8. 3LEDs for detecting the working status

Specifications:

Physical Dimension 154X82X31mm(L*W*H)
Weight 500 g
Cellular Communication module Quectel BG95 M3 Global Version
Frequency

Working frequency:

Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85

• Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85

• EGPRS: 850/900/1800/1900MHz

protocol: Embedded TCP/IP stack

Sensitivity: -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power: Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B
GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s
Processor STM
Motion sensor DA260
Wifi position Wifi 4.0
Bluetooth Bluetooth 5.0
Power Battery

Disposable Lithium-ion battery and (3.6V,20000mAh)

and ultra-low discharge rate:less than 1%, store one year below 25℃
Power consumption Average working current <100mA; Power save current 107uA;
GSM antenna Internal High Gain
GPS antenna Internal High Gain
SIM Microsim
Indicator 2 status LEDs, Green: GPS, Red: Celluar(Inside enclosure)
Environmental Parameter Working Temperature -20℃ ~ +70℃
Humidity 5% ~ 95% (no fog)
Ingress Protection Rating IP67

More features:

• Hardware definition

Enclosure IP67 waterproof
Magnets To stick the device to metal surface
Power button Inside the enclosure for hidden installation purpose, to turn on or turn off device
Light sensor To detect removal alarm ,remove the sticker on the light sensor, when the device expose to light, it will trigger a removal alarm
Temperature sensor To measure the environment temperature
Motion sensor To detect the motion or static status of the device, detect motion alarm and collision alarm

• OTA Commands from Backend

Since the wake up of the device is normally short before enter into sleep mode, it is hardly to receive SMS , to ensure the command sending efficiently, we suggest an OTA commands to be sent from the platform, when the device is online, the backend will automatic send this command, to make sure the commands is properly received.

• Intelligent work modes

The default work mode is regular model: upload interval is one-day one ping, the data packets information includes GPS status, longitude and latitude, cellular signal Strength, satellite numbers, battery level etc, there are multiple track modes available from the device, below is the explanation for work mode priorities:

Track mode>Warehouse >Regular mode =Clock mode=Week mode= Motion and static mode；

The work mode which is equal can be replaced by each other and the last configuration will prevail

FAQ

Q1. Can you help for design?

A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.

Q2: Are you manufacturer?
A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience
Q3: What's your payment terms?
A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.
Q4: What is your delivery time?
A: Immediate shipment for sample order and 3-15days for bulk order.
Q5: Do your have your own platform?
A.Yes, we have our own platform and mobile app.It's named 365qczx.net and app named Track sense.
Q6: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit; 2.We respect every customer
