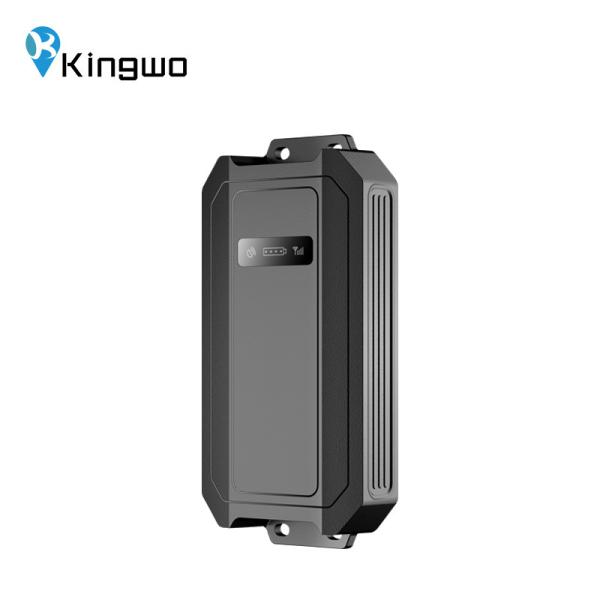

Lte-M Rechargeable Bluetooth GPS Tool Tracking Device IP67 Water Resistant
Lte-M Rechargeable Bluetooth GPS Tool Tracking Device IP67 Water Resistant
Lte-M Rechargeable Bluetooth GPS Tool Tracking Device IP67 Water Resistant
Lte-M Rechargeable Bluetooth GPS Tool Tracking Device IP67 Water Resistant
Lte-M Rechargeable Bluetooth GPS Tool Tracking Device IP67 Water Resistant
Lte-M Rechargeable Bluetooth GPS Tool Tracking Device IP67 Water Resistant
Specifications
Brand Name :
Kingwo
Model Number :
NT09E
Certification :
FCC CE ROHS
Place of Origin :
CHINA
MOQ :
2 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs per month
Delivery Time :
10-20 days
Packaging Details :
50 pcs per carton , total weight around 25kg
Bluetooth :
5.1
Battery :
Rechargeable Lithium
Weight :
480g
Celluar :
North America Bands
Waterproof :
IP67 water resistance
Material :
Black Plastic
Description

Lte - M rechargeable IP67 Water Resistant Bluetooth GPS Assets Tracker

NT089E is a Lte - M rechargeable IP67 Water Resistant Bluetooth GPS Assets Tracker , the device is with IP67 water and dusty proof standard, it can do live track as well as periodic tracking.

Features:

◆ No wired needed, easy for installation

◆ Built in G-sensor

◆ Temperature monitor

◆ 12000mah rechargeable battery

◆ Battery can be last from 15 days to one year each full charge

◆ Ultra low consumption, decrease to 5uA below when in sleep mode

◆ Strong magnetic and screws installation

Specifications:

Physical Dimension 154mm*82mm*30mm(L*W*H)
Weight 350±5g
Cellular Communication module Quectel BG95
Frequency

Working frequency:

Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85

• Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85

• EGPRS: 850/900/1800/1900MHz

protocol: Embedded TCP/IP stack

Sensitivity: -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power: Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B
GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s
Processor ST
Motion sensor DA260
Wifi position Wifi 4.0
Power Battery

Rechargeable Lithium-ion battery and (3.7V,

12000mAh)

and ultra-low discharge rate:less than 2%, store

one months below 25℃
Power consumption Average working current <50mA; Power save current <40uA;
GSM antenna Internal High Gain
GPS antenna Internal High Gain
SIM Microsim
Indicator

3 status LEDs,

Green: GPS, Red: Network, Blue: battery
Environmental Parameter Working Temperature -20℃ ~ +70℃
Humidity 5% ~ 95% (no fog)
Ingress Protection Rating IP67

More features:

• Hardware definition

Cellular LED (Red) Event Status
Network connecting Fast flash
Network connected Slow flash
Module error Solid on
Position LED(Green) GPS position Solid on
LBS position 0.5 seconds on, 0.5 seconds off
Wifi Position 2 seconds on, 2 seconds off
No position Off

Charging LED( Blue)

 100% charging 4 lights solid on
75%-80% charging 3 lights solid on and 1 light flash
56%-74% charging 3 lights solid on and 1 light off
50%-55% charging 2 lights solid on, 1 light off,1 light flash
30%-49% charging 2 lights solid on, 2 lights off
25%-29% charging 1 lights solid on, 2 lights off,1 light flash
10%-24% charging 1 lights solid on, 3 lights off
1%-9% charging 1 light flash,3 lights off
Lte-M Rechargeable Bluetooth GPS Tool Tracking Device IP67 Water Resistant

• OTA Commands from Backend

Since the wake up of the device is normally short before enter into sleep mode, it is hardly to receive SMS , to ensure the command sending efficiently, we suggest an OTA commands to be sent from the platform, when the device is online, the backend will automatic send this command, to make sure the commands is properly received.

• Intelligent work modes

The default work mode is regular model: upload interval is one-day one ping, the data packets information includes GPS status, longitude and latitude, cellular signal Strength, satellite numbers, battery level etc, there are multiple track modes available from the device, below is the explanation for work mode priorities:

Track mode>Warehouse >Regular mode =Clock mode=Week mode= Motion and static mode；

The work mode which is equal can be replaced by each other and the last configuration will prevail

FAQ

Q1. Can you help for design?

A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.

Q2: Are you manufacturer?
A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience
Q3: What's your payment terms?
A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.
Q4: What is your delivery time?
A: Immediate shipment for sample order and 3-15days for bulk order.
Q5: Do your have your own platform?
A.Yes, we have our own platform and mobile app.It's named 365qczx.net and app named Track sense.
Q6: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit; 2.We respect every customer
