Specifications
Brand Name :
Kingwo
Model Number :
NT09E
Place of Origin :
Shenzhen
MOQ :
2 Pieces
Price :
67~57 US$ / 2~5000 Pieces
Payment Terms :
Western Union
Supply Ability :
100000/Month
Delivery Time :
15~25 Day
Packaging Details :
154mm*82mm*30mm
Function :
GPS Tracker
Network :
CatM1&NB IoT&2G
Color :
Black
Feature :
GPS+WIFI+LBS+AGPS +BLE
Weight :
440g
Application :
Asset Tracker
Description

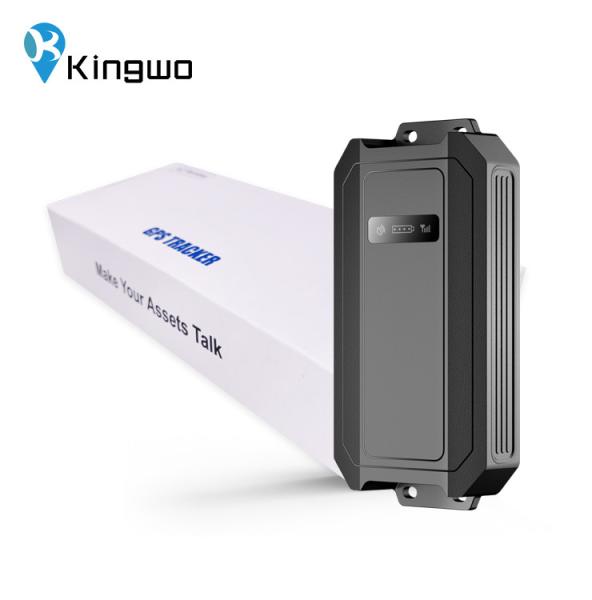

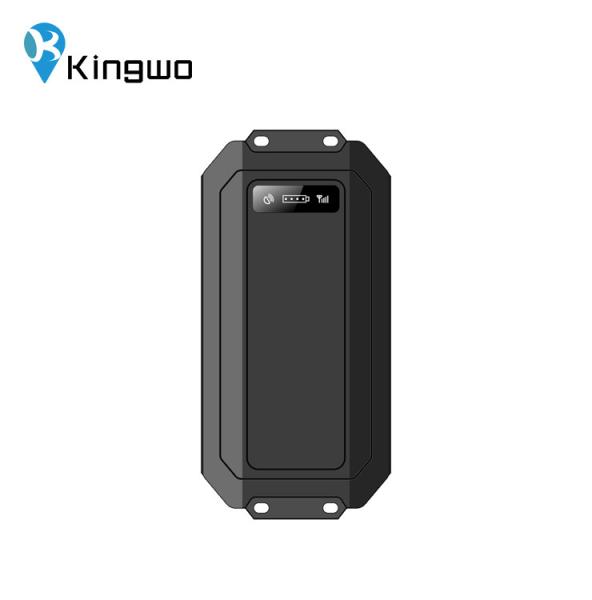

Lte-M CatM1 NBIOT long battery life waterproof rechargeable assets GPS tracker NT09E


NT-09E is an ultra-rugged asset GPS Tracker with 12000Mah rechargeable battery based on CatM1 and NBIOT technology, it has built in Bluetooth, motion sensor, temperature sensor and light sensor. It’s ideally suitable for Asset tracking market.

1 Highlights

  • Magnetic or screw mount, easy for installation
  • Built in G-sensor
  • Temperature monitor
  • Built-in large-capacity industrial grade rechargeable polymer lithium battery
  • Strong magnetic and screws installation
  • Support tamper proof alarm
  • Multiple position mode: GPS, Wifi,AGPS, LBS
  • Jamming detection
  • IP67 waterproof
  • Regular mode, clock mode, track mode

2 Function

  • Position and monitor
  • GPS/Wifi/LBS
  • Temperature monitor
  • Bluetooth
  • AGPS Positioning
  • Different tracking modes
  • Motion alarm
  • Removal alarm
  • Collision alarm
  • History data storage


3 Specification

PhysicalDimension154X82X30mm(L*W*H)
Weight490±5g
CellularCellular moduleQuectel BG95
Frequency

Working frequency:
Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85
• Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85
• EGPRS: 850/900/1800/1900MHz
protocol: Embedded TCP/IP stack
Sensitivity: -107dBm@850/900MHz
-106dBm@1800/1900MHz
Output power: Class 4 (2W)@850/900MHz
Class 1 (1W)@1800/1900MHz
GPRS data: GPRS Class 10, Mobile Station Class B

GPS

Channels: 50
Sensitivity: -147dBm
Position accuracy:5-10m
Accuracy: 5m CEP
Cold start: <27s
Hot start: <1s

ProcessorSTM32G070CB
Motion sensorDA260
Wifi positionWifi 5.0
BluetoothBluetooth 5.1
PowerBattery

Disposable Lithium-ion battery and (3.7V,12000mAh)
and ultra-low discharge rate:less than 1%, store one year below 25℃

Power consumptionAverage working current <100mA; Power save current 7uA;
GSM antennaInternal High Gain
GPS antennaInternal High Gain
SIMMicrosim
Indicator3 status LEDs, Green: GPS, Battery level: Blue: Red: Celluar
Environmental ParameterWorking Temperature-20℃ ~ +70℃
Humidity5% ~ 95% (no fog)
Ingress Protection RatingIP67



Application:

Vehicles/ Trailers/ High value machines/ Cranes/Excavators/Trolleys / Bins,/Containers/ Pallets, Returnables

CatM1 NBIOT Long Lasting Gps Tracking Device 12000Mah Mini Gps Tracker For Tools

4 FAQ:

Q1. Can I have a sample order for trackers?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 3-5 days for Sample, 2-4 weeks for volume order

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-15 days to arrive.

Q5. Do you have your own software?
A: Yes we have own backend software as well as Apps

Q6. Do you accept OEM and ODM?
A: Yes we do

Q7: Are you manufacturer?
Yes we are manufacturer and we have around 13 years’ experience in assets tracking market

Q8. How to proceed an order for trackers?
A: Firstly send us an inquiry.
Secondly we will recommend right model for you, after order confirmed, we will send proforma invoice to pay
Thirdly we prepare samples and ship

Q9: Do you offer guarantee for the products?
A: Yes, we offer 14 months warranty to our products.

Q10: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

If any faulty found, please provide us a list to describe the problem, we will analyze and provide feedback within 2 days then find necessary solution.
