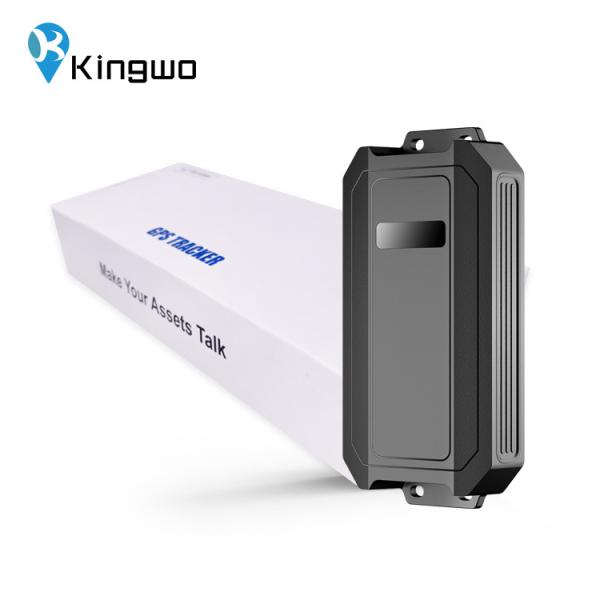

Bluetooth GPS 20000Mah Battery Powered Asset Tracking Devices Lte-M
Bluetooth GPS 20000Mah Battery Powered Asset Tracking Devices Lte-M
Bluetooth GPS 20000Mah Battery Powered Asset Tracking Devices Lte-M
Bluetooth GPS 20000Mah Battery Powered Asset Tracking Devices Lte-M
Bluetooth GPS 20000Mah Battery Powered Asset Tracking Devices Lte-M
Bluetooth GPS 20000Mah Battery Powered Asset Tracking Devices Lte-M
Specifications
Brand Name :
Kingwo
Model Number :
NT08E
Certification :
FCC CE ROHS
Place of Origin :
CHINA
MOQ :
2 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs per month
Delivery Time :
10-20 days
Packaging Details :
50 pcs per carton , total weight around 25kg
Wifi :
Wifi 4.0
Bluetooth :
5.0
Bands :
Global Connectivity
Battery :
20000Mah
LBS :
On
AGPS :
Supported
Description

G Lte-M Lithium Ion Battery Powered 10 Years Heavy Equipment Bluetooth GPS Assets Tracker

NT08E is a 4G Lte-M Lithium Ion Battery Powered 10 Years Heavy Equipment Bluetooth GPS Assets Tracker, the device is with bluetooth for ibeacon features and 20000mah batteries which can work up to 10 years

Features:

1. Wifi MAC ID indoors tracking

2. Bluetooth 5.0 for ibeacon

3. Waterproof for outdoors tracking

4. Intelligent work modes

5. Clock mode, fixed upload, warehouse mode

6. Temperature monitor

7. Jamming detection

8. 10 years work life

Specifications:

Physical Dimension 154X82X30mm(L*W*H)
Weight 495±5g
Cellular Communication module Quectel BG95
Frequency

Working frequency:

Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85

• Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85

• EGPRS: 850/900/1800/1900MHz

protocol: Embedded TCP/IP stack

Sensitivity: -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power: Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B
GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s
Processor STM32G070CB
Motion sensor DA260
Wifi position Wifi 4.0
Bluetooth Bluetooth 5.0
Power Battery

Disposable Lithium-ion battery and (3.6V,20000mAh)

and ultra-low discharge rate:less than 1%, store one year below 25℃
Power consumption Average working current <100mA; Power save current <15uA;
GSM antenna Internal High Gain
GPS antenna Internal High Gain
SIM Microsim
Indicator 2 status LEDs, Green: GPS, Red: Celluar(Inside enclosure)
Environmental Parameter Working Temperature -20℃ ~ +70℃
Humidity 5% ~ 95% (no fog)
Ingress Protection Rating IP67

More features:

• Wifi Locate

The device has built in Wi-Fi Chip, it automatically connects to the WIFI hotspot nearby and filter the hotspot info then select the WIFI hotspots with strongest signal, the device will pack those hotspots info and saved into the packet that will be uploaded, after the backend receives Wi-Fi information, it will interpret the WIFI info and acquire the current location from the Wi-Fi database, The default setting is WIFI priority, once it detects WIFI Hotspot, it will upload WIFI info only , and do not use GPS, if WIFI is not detected, it will use GPS to position.

• ibeacon

The device is equipped with Bluetooth chip, and it broadcasts ibeacon BLE information regularly after power on, and the distance can be checked through the Apple beacon APP;

• Wifi failure feature

After powering on the WIFI twice in a row, the serial port did not report any information, and followed the positioning packets it will report a WIFI failure alarm;

• Collision alarm

When the acceleration change value exceeds A, the device immediately wakes up and reports a collision alarm, please note collision alarm won’t work if the device is in motion and static mode as well as warehouse mode.

Bluetooth GPS 20000Mah Battery Powered Asset Tracking Devices Lte-M

FAQ

Q1. Can you help for design?

A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.

Q2: Are you manufacturer?
A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience
Q3: What's your payment terms?
A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.
Q4: What is your delivery time?
A: Immediate shipment for sample order and 3-15days for bulk order.
Q5: Do your have your own platform?
A.Yes, we have our own platform and mobile app.It's named 365qczx.net and app named Track sense.
Q6: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit; 2.We respect every customer
