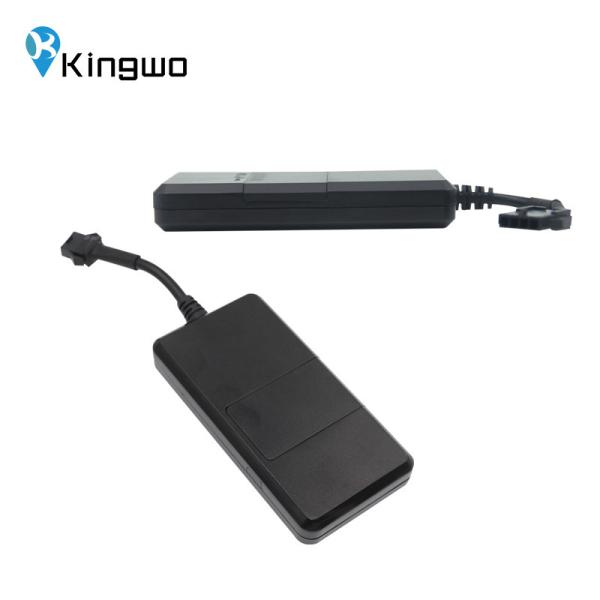

IP65 LTE Fleet Management Tracking Devices 4G Anti Theft Gps Tracker For Motorcycle
IP65 LTE Fleet Management Tracking Devices 4G Anti Theft Gps Tracker For Motorcycle
IP65 LTE Fleet Management Tracking Devices 4G Anti Theft Gps Tracker For Motorcycle
IP65 LTE Fleet Management Tracking Devices 4G Anti Theft Gps Tracker For Motorcycle
Specifications
Brand Name :
Kingwo
Model Number :
LT01-D
Certification :
CE,FCC,RoHS
Place of Origin :
China(Mainland)
MOQ :
2pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pcs/month
Delivery Time :
10-20days
Packaging Details :
carton case
LED :
2 LED lights for GPS and GSM
Color :
Black
Gsm antenna :
Inbuilt Antenna
Voltage :
9-100V
OEM :
Acceptable
Description

4G LTE Fleet Management anti - theft wiring gps tracker for motorcycle

LT01 is a 4G GPS Tracker working based on GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets with built-in antennas by SMS or GPRS.With its compact design, the device can easily connect with car battery to acquire real time data, such as car position, ignition status, speed data, also can remotely disable the engine to stop car. And all these information will be upload via GPRS to server for further analysis, statistics, storage and more extensive application.

Highlights

  • Wide range voltage input range: DC 9-100V
  • Supports GPS/LBS /AGPS positioning
  • Ignition detecting
  • Real-time GPS tracking, History playback, Blind data storage, Cornering compensation
  • Remote power and fuel control ( Relay required)
  • Built in G-sensor
  • Dual IP supported (Main server and backup server)
  • OTA for easier maintenance
  • Built in back up battery

Function

  • Real-time tracking monitoring, Real-time GPS tracking, History playback, Blind data storage, Cornering compensation
  • Track according to time, distance and speed
  • LBS and AGPS Positioning
  • Low voltage and main power cut off alarm
  • Towing alarm
  • Remote power and fuel cut off (Relay required)
  • Mileage calculation

Specification

Physical Dimension 88mm*45mm*14mm(L*W*H)
Weight 47±5g
Cellular Lte module Fibcom L610
Frequency

Working frequency:

4G networks:TDD LTE/FDD LTE

3G networks:WCDMA

2G networks:GSM/GPRS Network

Protocol: Embedded TCP/IP stack

Sensitivity: -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power: Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B
GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s
Power Input voltage 9-100V
Battery NI-MH AAA 3.6V/60mA, 2 hours working time based on 2-3 minutes upload
Power consumption

Average Current: <30mA (DC 12V)

Maximum current: <10mA (DC 12V)
Interface Digital input(1) Ignition detect
Digital output(1) Relay
GSM antenna Internal High Gain
GPS antenna Internal High Gain
SIM Microsim
Indicator 2 status LEDs, Green: GPS, Red: GSM
Memory 1300 pcs
Environmental Parameter Working Temperature -20℃ ~ +70℃
Humidity 5% ~ 95% (no fog)
Ingress Protection Rating IP65

4G version for different countries:

Regions Frequencies
China/India

TDD LTE:B38/B39/B40/B41

FDD LTE:B1/B3/B5/B8

WCDMA:B1/B8

GSM:900/1800MHz
Europe/Middle East/Africa

TDD LTE:B38/B40/B41

FDD LTE:B1/B3/B5/B7/B8/B20

WCDMA:B1/B5/B8

GSM:B3/B8
North America

FDD LTE:B2/B4/B5/B12/B13/B14

WCDMA:B2/B4/B5
Australia/Taiwan/Brazil

FDD LTE:B1/B3/B4/B5/B7/B8/B28

WCDMA:B1/B2/B5/B8

GSM:B2/B3/B5/B8
