2G wide voltage 9 - 100v high gain gps antenna vehicle gps tracking device

MT100 is our newest 2g vehicle gps tracker which support wide voltage from 9 - 100V,inner side antenna real time tracking,multiple protocols can be set via SMS or bluetooth.

Features:

● Support GPS, AGPS and LBS positioning.

● Built in G-sensor

● Driving behavior monitor (Speeding, hard declaration, hard acceleration, cornering alarm)

● Support dual IP and dual protocols

● Support upload interval by time, distance and speed

● Support OTA (Remote firmware upgrade feature)

● Bluetooth features for parameter setting and sensors connecting

Detail function:

History data storage (Default ON)

When the vehicles enters the GPRS blind area, the device will store the GPS data upon 15s interval as default value, those data will be uploaded to the backend server once GPRS network recovered, maximum 1000 pcs of data can be stored, the interval can be configured from 5-7200 seconds

Over speed alarm (Default OFF)

When the vehicle speed is higher than the preset alarm value, the device will notify the backend. Similarly, when the vehicle speed is lower than preset alarm value, a low speed alarm will be uploaded to the backend, this value is configurable.

Driving behavior alarm (Default OFF)

The device is built in with G-sensor, which can detect speeding, hard deceleration, hard acceleration and Cornering alarm

Device removal alarm

Device is with built in light sensor, when it detects the lights vary, it will report removal alarm to the backend

Mileage Calculation (Default ON)

Mileage data is calculated based on the speed from GPS, The vehicle mileage data is uploaded to the backend along with the vehicle positioning data; the initial mileage can be configured when initially the device is set up.

Remote Upgrade (OTA) (Default ON)

As long as GPRS is connected, remote firmware upgrade can be done remotely

Dual IP or Domain (Default ON)

The device supports dual IP connection between the primary server and the standby server. If there is a problem with the primary server, the device automatically switches to the standby server. The primary server and the standby server can be set in either IP or domain name.

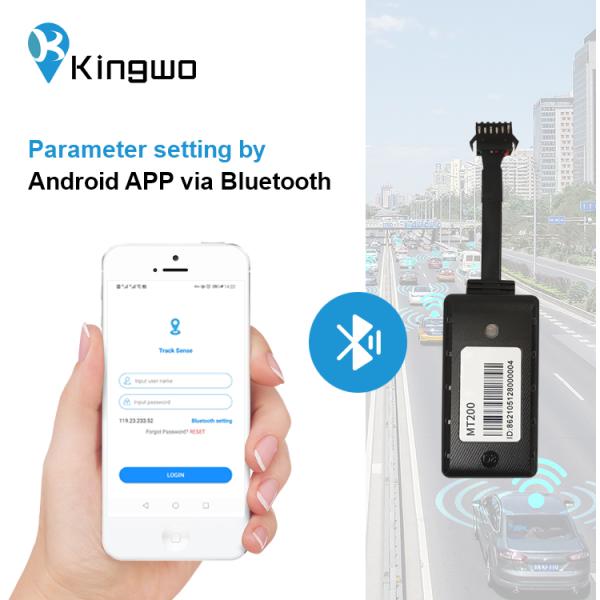

Bluetooth function

The device is with built in Bluetooth function for configuration and sensors connecting for example Bluetooth fuel sensor

Specification:
