4G cat- 4 real time tracking support relay remote engine mini vehicle gps tracker

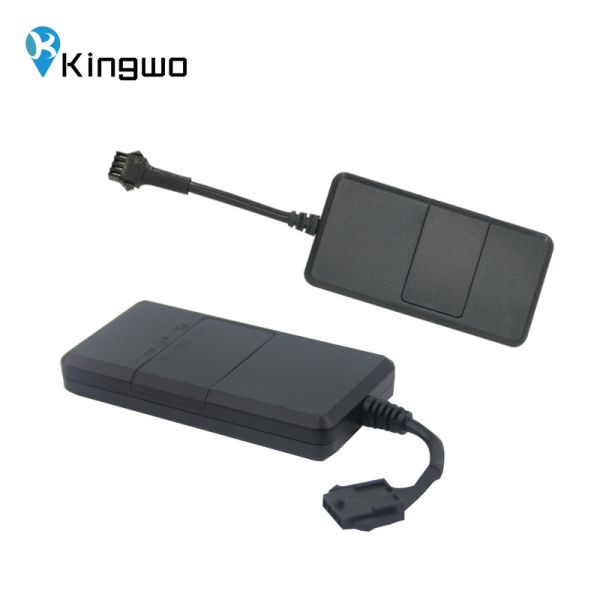

LT01 is Realtime Tracking device 4G Mini Vehicle motorcycle GSM GPRS GPS vehicle gps tracker .Which with small in size and with internal GPS/GSM antenna.Wide voltage from 9 - 100v ,suitable for motorcycles , cars , vehicles and scooters , and it has one digital output for power off relay connecting and one digital input for ignition detect .

Specification :

Functions :

1. Basic function-Tracking function

Including timely upload, blind zone compensation, speed mileage statistics, Geo-fence and other functions, the backend sends positioning commands, and the device uploads data including longitude, latitude, speed, direction, and status information.

2. Timely Tracking

The device can be set to upload the position and status information of the vehicle to the backend at a certain time, certain period or at a certain time interval.

3. Blind area data storage

When the vehicles enters the GPRS blind area, the device will store the GPS data upon 15s interval, the track data will be saved at the shortest 15S interval, those data will be uploaded to the backend server once GPRS network recovered, minimum 1000 pcs of data can be stored.

4. Cornering Compensation

If the device detects that the vehicle driving direction has certain angular deviation(default 15 degrees), the device will upload a packet extra to make sure the driving trace is more accurate.

5. AGPS

The device supports AGPS, once the device is connected to GPRS, the AGPS can be used to speed up the positioning and improve accuracy.

More feature :

1. Remote Configuration

To remote set device parameters including IP, center number and different monitoring parameters via the backend or SMS.

2. Remote Upgrade (OTA)

As long as GPRS is connected, remote firmware upgrade can be done.

3. Dual IP or Domain

The device supports dual IP connection including the primary server and the standby server. The default connection is the primary server. If there is a problem with the primary server, the device automatically switches to the standby server. The primary server and the standby server can be set in either IP or domain name
