Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
Specifications
Model NO. :
SK48
Etching Type :
Double Spray
Precision :
High Precision
Condition :
New
Working Size :
1350mm or 1500mm
Etching Solution :
Ferric Chloride
Engraving Machine Type :
Chemical Etching
Control :
Automatic
Current :
AC
Laser Type :
Chemical Etching
Transport Package :
Wooden Package
Specification :
CE
Trademark :
Golden Eagle
Origin :
Beijing, China (Mainland)
HS Code :
848620900
Supply Ability :
10sets/Month
After-sales Service :
1year. After 1year,Once Some Components Are Broke
Warranty :
1year. After 1year,Once Some Components Are Broke
Type :
Electrical Etching Machine
Object :
Metal
Usage :
Corrosion & Hollowed-out
Certification :
CE
Description

Large decorative metal plate etching machine

SK48 Automatic Etching/ Stripping Machine
Product Parameters

SK48 Automatic Etching/ Stripping Machine
Power 38.5KW/380V/50HZ
Working width 1500mm
Etching system Spraying & Swing system
Heat System 3KW Titanium * 5pcs
Etching pump 4.5KW*3pcs
Stripping Pump 5.5KW*2 pcs
Working Speed 0.5~6.5 M/Min (adjust)
Machine Size 18550*2250*1850mm
Weight About 3500 kgs
Product Description

Process: load (3meter) + etching (3meter)+ micro etching (1meter)+washing (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)


Control System:

Temperature; Conveyor Speed; Filter; Pressure Sparying.

Feature:
1. This etching /Stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality.
2. Products can be decorative stainless steel plate, huge aluminum plate, elevator door, huge name plate etc.
3. Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc.
4. Metal plate thickness is approx 0.6~1.0mm, the etching depth is 0.06~0.08mm.

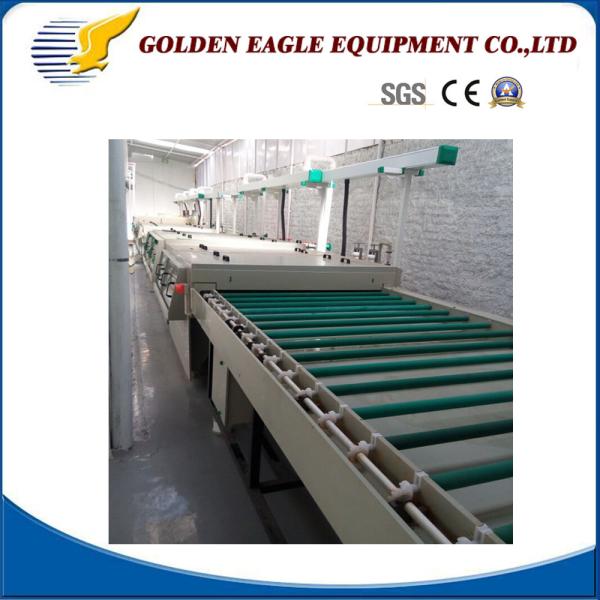

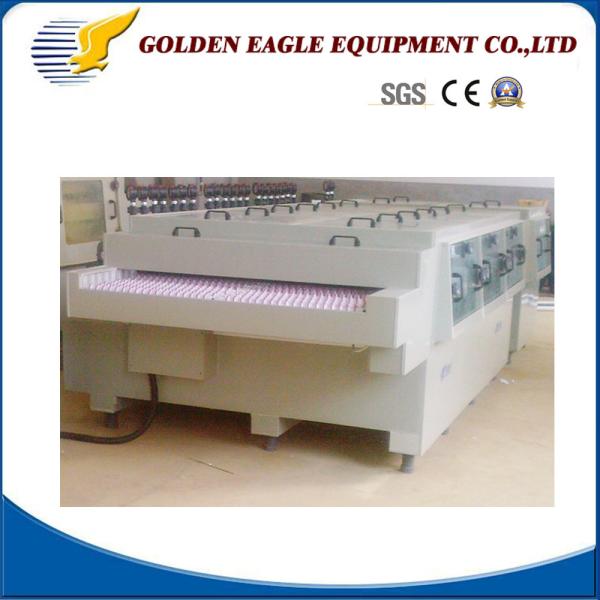

Detailed Photos

Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For CorrosionEtching Ferric Chloride Huge Metal Plate Etching Machine SK48 For CorrosionEtching Ferric Chloride Huge Metal Plate Etching Machine SK48 For CorrosionEtching Ferric Chloride Huge Metal Plate Etching Machine SK48 For CorrosionEtching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion

Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For CorrosionEtching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion

Packaging & Shipping

Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For CorrosionEtching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion
