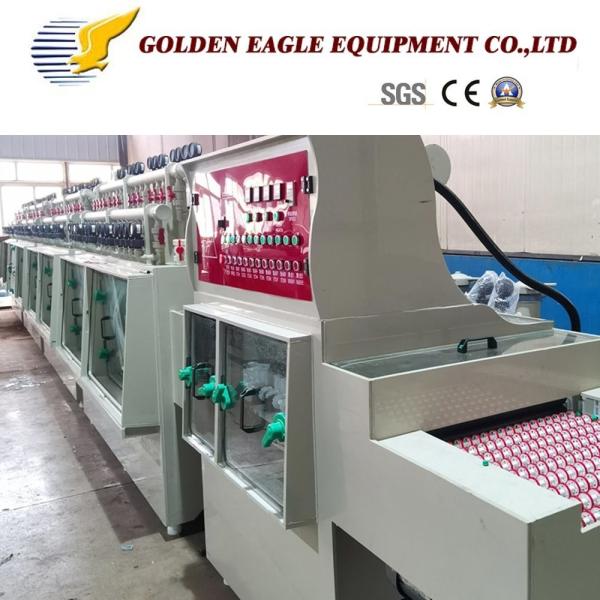

0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
Specifications
Model NO. :
GE-SK-9
Etching Type :
Double Spray
Precision :
Precision
Condition :
New
Rated Power :
380V/23kw
Working Size :
650*9500mm
Transfer Speed :
0.5 - 6m/Min
Control System :
PLC Panel
out Szie :
L*W*H = 9860*2600*1850mm
Transport Package :
Wooden Package
Specification :
CE
Trademark :
Golden Eagle
Origin :
Beijing, China (Mainland)
HS Code :
848620900
Supply Ability :
30set/Month
After-sales Service :
1year. After 1year,Once Some Components Are Broke
Warranty :
1year. After 1year,Once Some Components Are Broke
Type :
Photochemical Etching Machine
Object :
Metal
Usage :
Corrosion & Hollowed-out
Certification :
CE
Samples :
US$ 500/Piece 1 Piece(Min.Order) | Request Sample
Description
SK12 Golden Eagle PCB Assembly Etching Machine
Product Parameters
Machine Model GE-SK12
Machine Power 108KW/380V/50HZ
Working Width 450mm
Working height 900mm±25mm
Working Temperature 37~45ºC
Etching Type Double sided etching strip swaying
Heating System Titanium tube heating
Etching Pump 7.5KW/380V/50Hz

Working Form		 Spray type, horizontal track feeding
(Stepless speed regulation)
Machine Size 17600*1700*1700mm (L*W*H)
Machine Weight 6200kgs
Product Description

Technological process

Load(500mm) - Etch 1 (2000mm) - Etch 2 (2000mm) - Etch 3 (2000mm) - Etch 4 (2000mm) - Etch 5 (2000mm) - Etch 6 (2000mm) - Clean (1500mm) - Unload (500mm)

Equipment description:
It adopts continuous mode and automatically cleans after etching. Materials used for the unit: PP high-quality engineering plastic and carbon steel plate.
Processing workpiece size: 650mm (maximum width); fifty × 50mm (minimum); 0.1~5.0mm (thickness) conveying speed range: 0.5~6.0m/min; Adjustable speed [preset working speed: 2.5 meters/minute] Transmission shaft diameter: 14mm
Roller diameter: 40MM

0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
Detailed Photos

0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size
0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size

Certifications

0.5 6m/Min Transfer Speed PCB Etching Equipment GE-SK-9 with 9860*2600*1850mm Out Size

FAQ


1.Q:Are you trading company or a factory ?
A: We are manufactory and We have import and export License .
2.Q:Where is your factory ?How Can I visit there?
A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.
3.Q:How can I get some samples ?
A: we are honores to offer you samples,please contact us anytime !
4.Q: How does your factory do regarding quality control ?
A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.
5.Q:Why us ?
A: 1. 20 years machine manufacture experiences !
2. More than 10 years good credit supplier on Made-in-China
3. satisfaction or we'll refund or rerun-your choice
4. Etching technology can be provided for free to our customer by our well-trained and professional engineers and staffs.
