3-5kg/ C Air Pressure System Dry Film Photoresist Laminating Machine for PCB

Specifications

Model NO. :

GE-D650

Dry Film Size :

Width: 250~610mm, 15~75um

Electricity Heater :

2kw/220V; 2PCS

Heat-Press Roller Diameter :

78mm * 2PCS

Air Pressure System :

3-5kg/ C

Exhaust System :

12/Min, 4× 1

Machine Weight :

220kgs

Transport Package :

Standard Export Wooden Case

Specification :

Trademark :

GOLDEN EAGLE

Origin :

China

HS Code :

84862090

Supply Ability :

30sets/Month

After-sales Service :

1year. After 1year,Once Some Components Are Broke

Warranty :

1year. After 1year,Once Some Components Are Broke

Power :

AC220V/ 50/60Hz/15A

Foundation Plate Size :

Long: 250~610mm

Width :

250~ 650mm

Thick :

0.05~3.2mm

Samples :

US$ 500/Piece 1 Piece(Min.Order) | Request Sample

Description

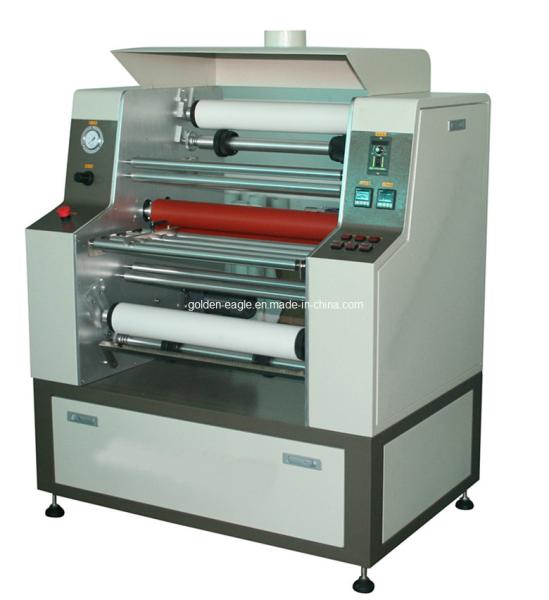

Dry Film Photoresist Laminating Machine for PCB

Dry Film Photoressit Laminating Machine

Features:

1. This machine is used for laminating photoresist dry film in PCB industry&metal parts processing industry. Coating the dry photoresist film on the metal plate surface.
2. Automatic temperature control system; Automatic Speed adjust system
3. Good viscosity strength and no bubble; High strength and heat evenly
4. High precision, operate simply

Machine Name:Dry Film Laminator
Power	AC220V/ 50/60HZ/15A
Foundation plate size	Long:250~610mm Thick:0.05~3.2mm Width:250~ 650mm
Dry Film Size	Width:250~610mm
Outsize/ Weight	L830×W1125×H1520mm / 220kg
Electricity Heater	2KW/AC220V 2PCS
Heat-press roller	Diameter:¢78mm * 2PCS
Press film temperature	50ºC-150ºC±2ºCAdjustable
Air Pressure system	3-5kg/ cm3
Exhaust system	12 m2/min, ¢4″×1

3-5kg/ C Air Pressure System Dry Film Photoresist Laminating Machine for PCB
